51 72 010 Replacing edge protection for left or right rear door
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
- Remove TRIM ON C-PILLAR AT BOTTOM
- Remove TRIM PANEL FOR DOOR PILLAR (bottom)

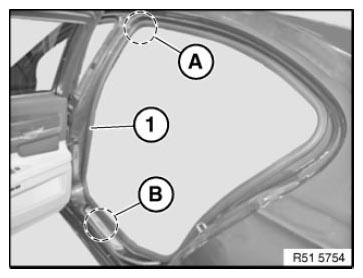

Detach edge protection (1).
Installation note:
Install edge protection (1) starting in area "A".
When installed, the location of joint of edge protection (1) must be in area "B".
Pull off mounting cord starting in area "B".
