51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe PROCEDURE for using special tool 00 9 324
.
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks:
- Remove MIRROR ON FRONT DOOR
IMPORTANT:

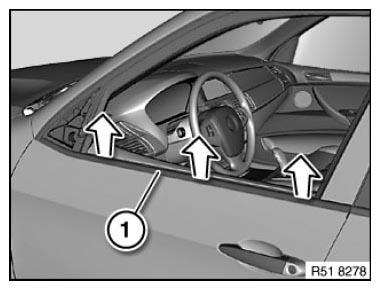

If reusing the existing window cavity cover strip (1), make sure it is not bent.
Lever out weather strip (1) with special tool 00 9 324 (starting at B-pillar).
Installation note:
Moisten weather strip (1) prior to installation with APPROVED LUBRICANT .
