51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip triangular mirror section trim (1).

Fig 1: Identifying Triangular Mirror Section Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Protect door trim panel as pictured with adhesive tape (1) in work area.

Raise door seal (2) slightly.

Release screws (3), feed out mirror and disconnect associated plug connection.

Tightening torque 51 16 1AZ .

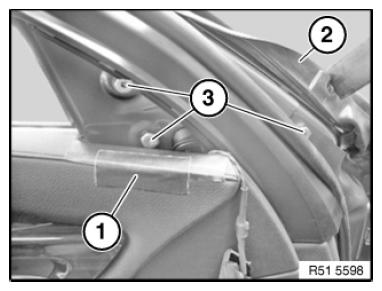

Fig 2: Identifying Adhesive Tape, Door Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of mirror must not be damaged or missing:

Seal on mirror base plate
Sound insulation in front door

Check function.
