51 47 077 Removing and installing/replacing illuminated rocker panel trim on rear left or right entrance (outer)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR LEFT DOOR SILL COVER STRIP

Lift out cover (1) with special tool 00 9 317 in upward direction.

Disconnect plug connection (2).

Remove cover (1).

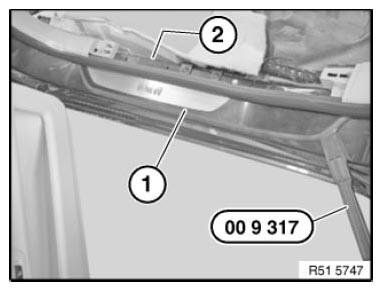

Fig 1: Lifting Out Cover With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove clips.

If necessary, lever clips out of entrance with suitable tool.

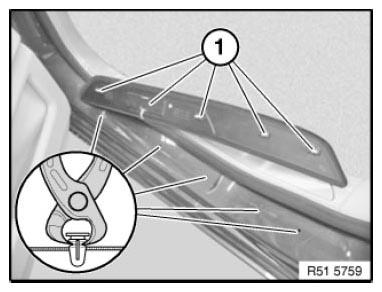

Fig 2: Identifying Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
