51 47 066 Removing and installing/replacing illuminated finishing strip on front left or right entrance

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT ENTRANCE COVER STRIP

Unclip cover (1) using special tool 00 9 317 .

Disconnect plug connection (2).

Remove cover (1).

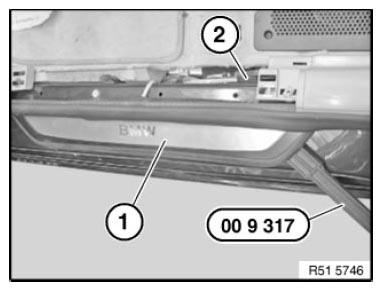

Fig 1: Removing Cover Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

If necessary, lever clips out of entrance with suitable tool.

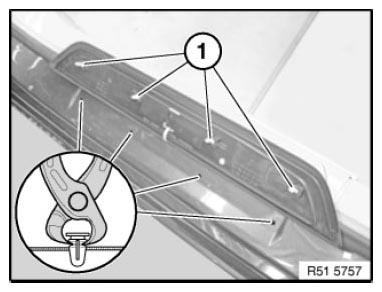

Fig 2: Identifying Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
