24 34 020 Replacing sealing sleeve for transmission housing (GA6HP26Z)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

24 2 390

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission fluid: Shell M-1375.4 ; BMW part number 83 22 0 142 516 ; 20 liters
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove rear UNDERBODY PROTECTION
Remove TRANSMISSION OIL SUMP
Remove transmission CROSSMEMBER

IMPORTANT: Support transmission with workshop hoist.

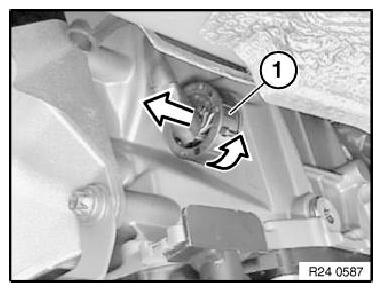

Unlock and disconnect plug (1) by turning.

Fig 1: Disconnecting Plug

G08495840

Courtesy of BMW OF NORTH AMERICA, INC.

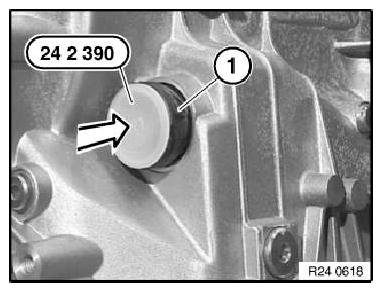

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 2: Inserting Special Tool (24 2 390) In Sealing Sleeve

G08495841

Courtesy of BMW OF NORTH AMERICA, INC.

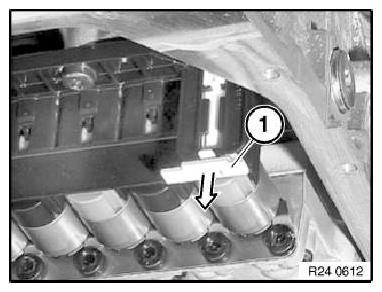

Unlock sealing sleeve with slide (1).

Fig 3: Sliding Sealing Sleeve

G08495842

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Note position of sealing sleeve.

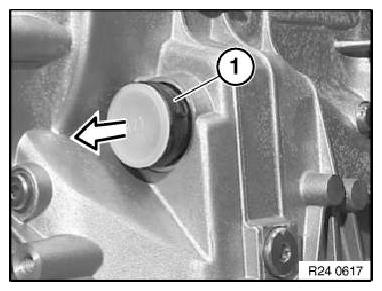

Pull out sealing sleeve (1).

Installation:

Screw in sealing sleeve partially (lug in upper area). Turn until lug engages in groove of transmission. Slide in sealing sleeve.

Lug on sealing sleeve must not be damaged!

Fig 4: Pulling Out Sealing Sleeve

G08495843
