24 11 010 Removing and installing/sealing or replacing gearbox sump (GA6HP26Z)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: Remove transmission oil sump only after it has cooled down.
After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission fluid: Shell M-1375.4 ; BMW part number 83 22 0 142 516 ; 20 liters
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove rear UNDERBODY PROTECTION with side guides

Remove oil drain plug (1).

Tightening torque 24 11 2AZ .

Drain automatic transmission oil.

Installation note:

Replace oil drain plug.

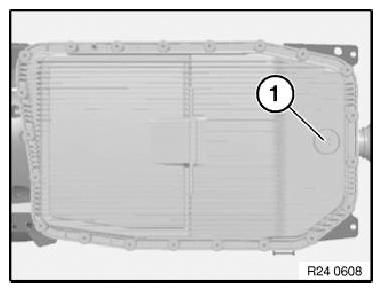

Fig 1: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations.

Unscrew all bolts.

Remove transmission oil sump (1).

Installation note:

Insert screws (2) until screw heads make contact.

Insert all further screws in diagonal sequence from inside to outside until screw heads make contact.

Tightening torque 24 11 1AZ .

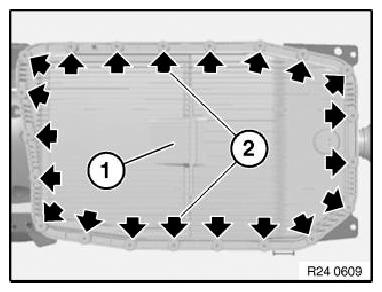

Fig 2: Locating Transmission Sump Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket (1) from transmission sump.

Clean gearbox oil sump to remove residual oil.

Clean sealing faces and groove with a cloth.

Insert new gasket in transmission oil sump groove.

IMPORTANT: Do not degrease transmission oil sump with cleaning agent.

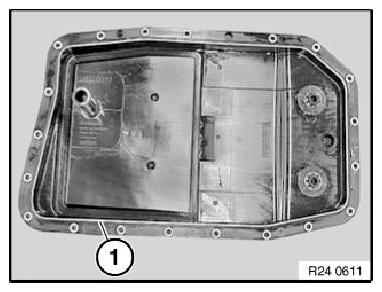

Fig 3: Identifying Transmission Sump Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring (1) on oil filter tube.

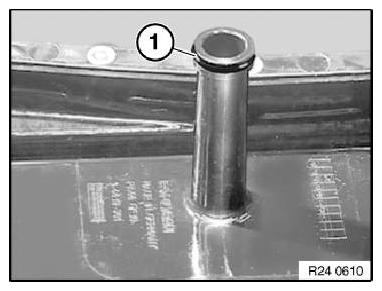

Fig 4: Identifying Sealing Ring On Oil Filter Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The gasket is correctly installed when it is engaged in the locating opening of the transmission oil sump.

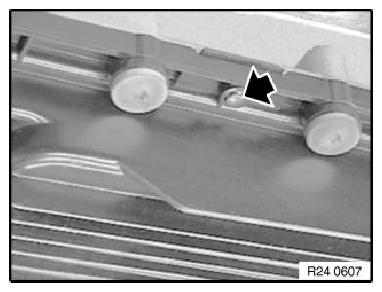

Fig 5: Locating Transmission Oil Sump Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
