67 32 610 Replacing fan for backrest on front seat (comfort seat)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove both rear panels on front seat backrest. Refer to 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .

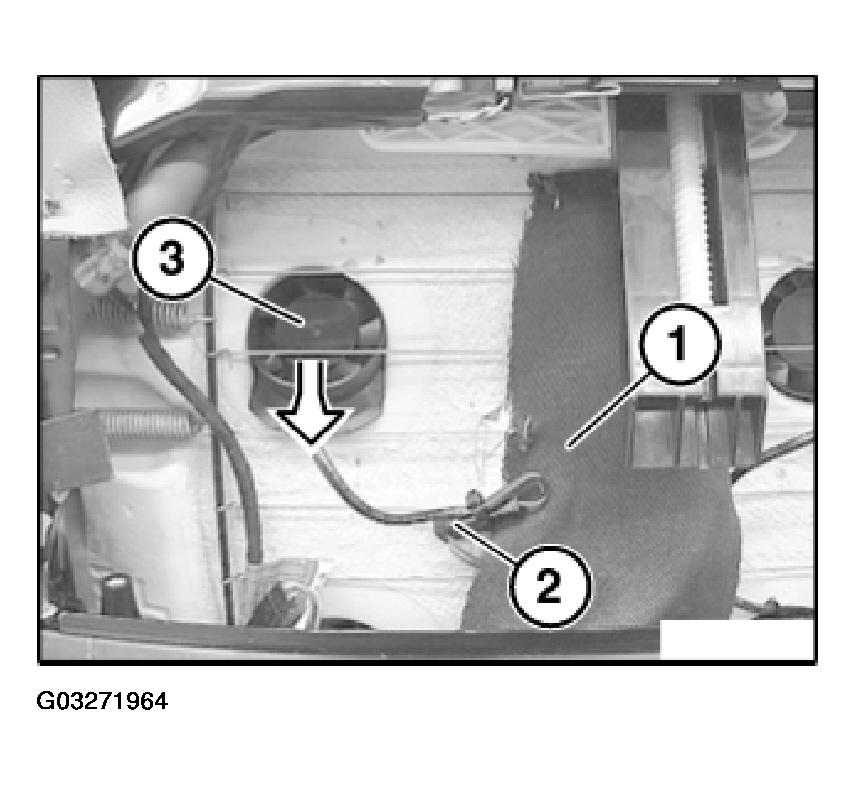

Lay felt (1) slightly to one side and disconnect plug connection (2). If necessary, cut through cable tie.
Installation:
Ensure correct cable routing.
If necessary, raise load-area net in working area.
Feed fan for backrest (3) in direction of arrow out of cushion section and remove.
