52 17 205 Removing and installing/replacing both rear panels on left or right front seat backrest (comfort)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Operation is shown on the left seat. When removing from the right seat, transpose the pull and striking sides accordingly.

Grip between rear panel and backrest cover on door side until clip can be felt (do not pull).
At same time, firmly punch towards middle of seat on inner side (tunnel side) at top.
Upper retainers spring out of seat guide.
Pull upper rear panel up out of lower guides.

Fig 1: Removing Rear Panel On Front Seat Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

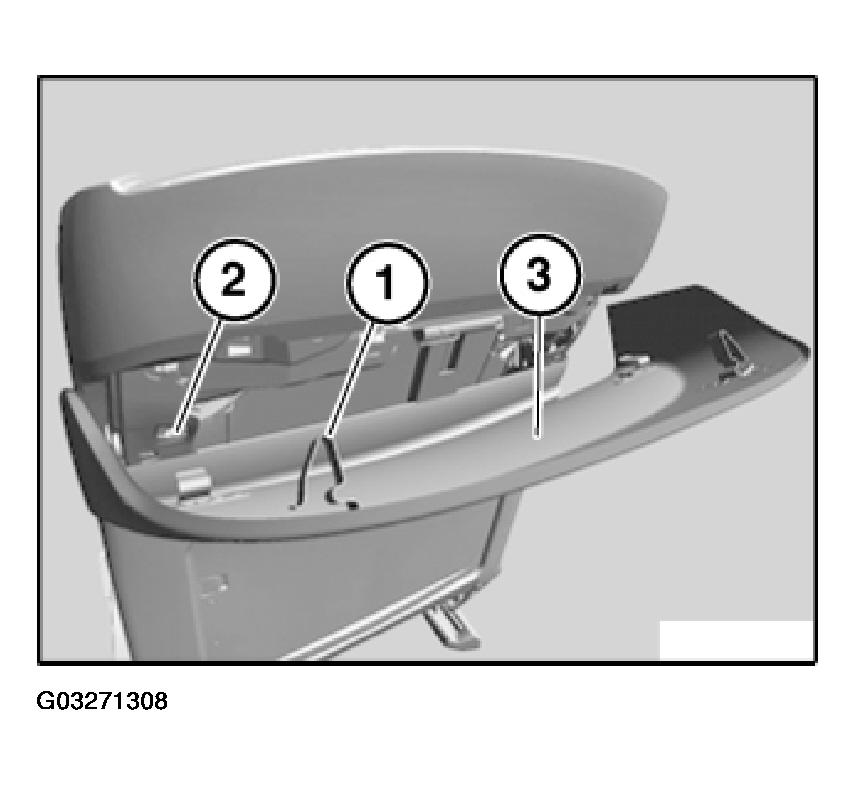

NOTE:

Retainer.
Guide.
Upper rear panel.

Fig 2: View Of Upper Rear Panel Components

Courtesy of BMW OF NORTH AMERICA, INC.

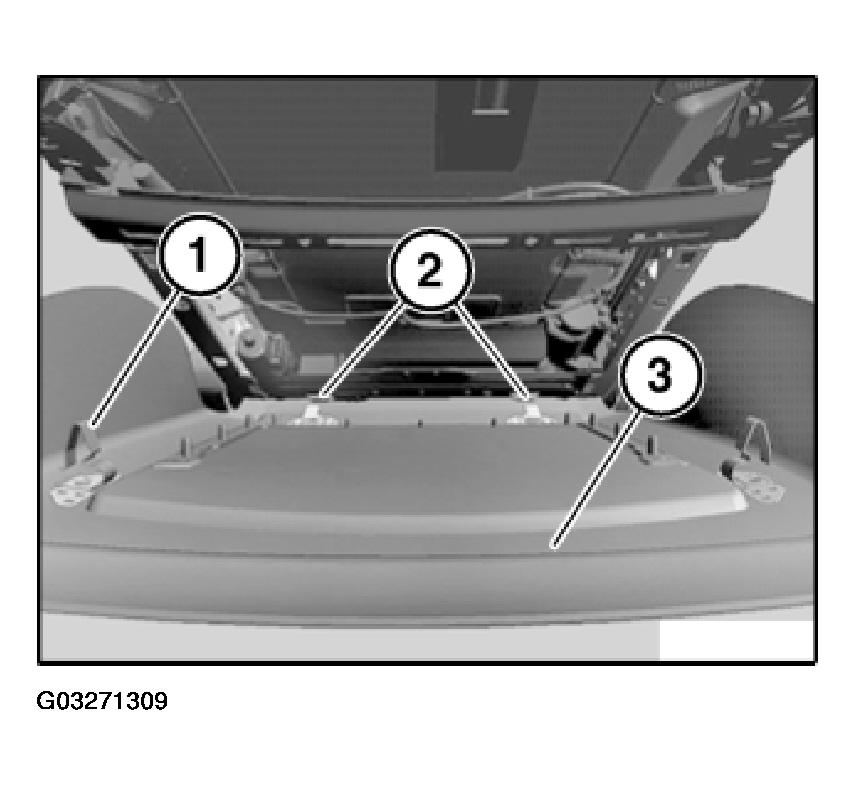

Unclip springs (1) on left and right.

Remove lower rear panel (3) upwards out of guide (2).

Fig 3: Locating Springs In Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.
