51 43 251 Removing and installing/replacing trim panel for left or right rear roof pillar (C-pillar)
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove REST SIDE SECTION .
Version with 3rd seat row:
- Remove TRIM ON C-PILLAR AT BOTTOM .

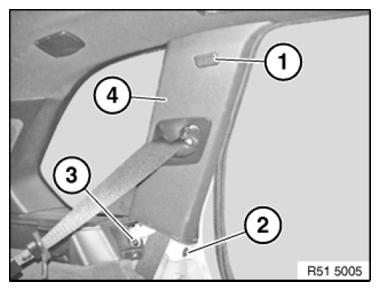

Lever out cap (1) and release screw underneath.
Release clip (2) and screw (3).
Tightening torque 51 43 2AZ .
Remove trim (4).
Complete removal only:
Release SCREW FOR SEAT BELT .
Feed trim (4) out of seat belt.
