51 43 148 Removing and installing or replacing trim on left or right door pillar (top)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove PANEL FOR DOOR PILLAR (BOTTOM) .

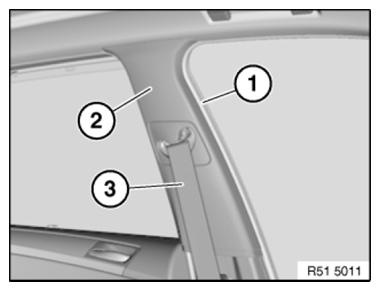

Detach edge protector (1) in area of trim (2).

Pull off trim (2) towards bottom.

Complete removal only:

Release BELT SCREW on front seat.

Feed out belt strap (3) from trim (2).

Fig 1: Identifying Edge Protector, Door Pillar Trim And Belt Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

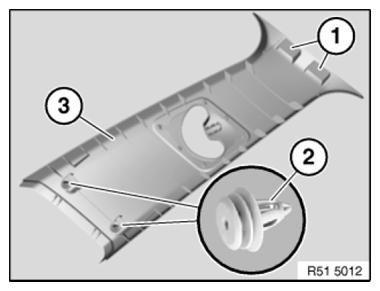

Guides (1) and clips (2) on trim (3) must not be damaged.

Fig 2: Identifying Door Pillar Trim, Guides And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
