51 43 150 Removing and installing or replacing trim panel for left or right door post (bottom)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

Version with fresh air grille:

Lift out cover (1) with special tool 00 9 322 .

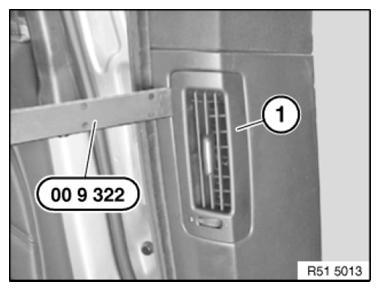

Fig 1: Lifting Out Cover Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Version with fresh air grille:

Unscrew screws (1).

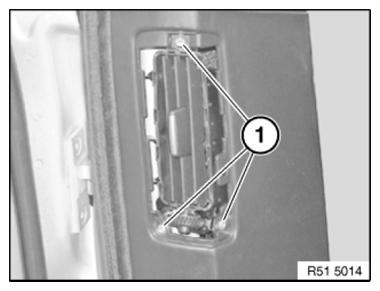

Fig 2: Identifying Air Grille Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Move front seat forwards.

Detach edge protection in area of trim panel (2).

Detach trim panel (2 and 4) at clips (1) in inward direction.

Detach trim panel (2) at latch mechanism (3) from trim panel (4).

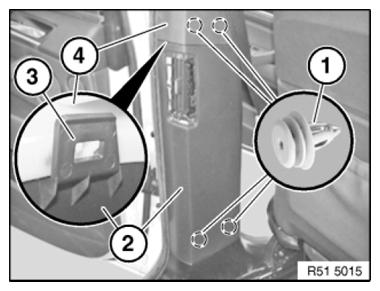

Fig 3: Identifying Trim Panels, Latch Mechanism And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) and guides (3) on trim panel (2) must not be damaged.

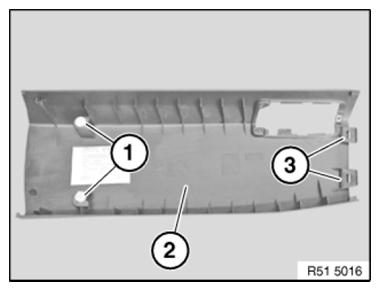

Fig 4: Identifying Trim Panel, Clips And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
