51 46 050 Removing and installing/replacing top trim on rear apron

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove STORAGE COMPARTMENT IN LUGGAGE COMPARTMENT ON LEFT/RIGHT .
Remove TRIMS ON D-PILLAR AT BOTTOM left/right.

Release screws (1).

Take off cover (2).

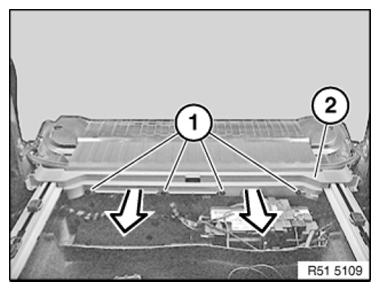

Fig 1: Identifying Trim Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove trim (2) inwards.

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure mucket (1) is correctly seated on trim (2).

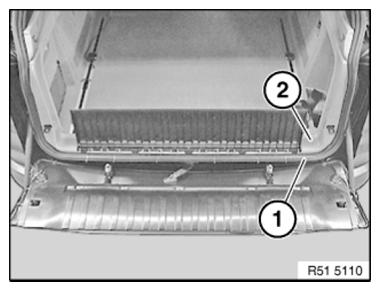

Fig 3: Identifying Mucket And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
