51 47 105 Removing and installing/replacing trim on D-pillar at bottom left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL on left or right.

Unclip trim (1) in direction of arrow.

Installation:

Catches on trim (1) must not be damaged.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release trim (2) at clip (3) and remove towards inside.

Installation:

If necessary, replace faulty clip (3).

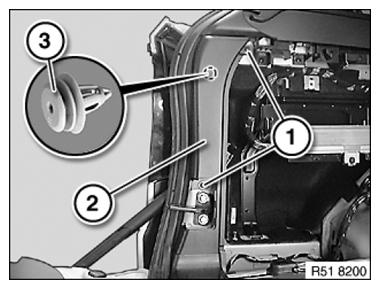

Fig 2: Identifying Trim, Clip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
