51 16 378 Removing and installing/renewing hinge for upper glovebox lid

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove GLOVE COMPARTMENT .
Remove UPPER GLOVEBOX LID .

Close glovebox lid.

Release tab washer (1) and remove pin (2).

Open glovebox lid.

Disconnect spring (3).

Release screw (4).

Feed out damping element (5).

Installation:

Replace tab washer (1) and pin (2).

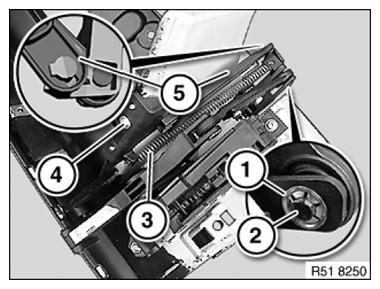

Fig 1: Identifying Glovebox Lid Spring, Tab Washer, Pin, Screw And Damping Element

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Take off holder (2).

Feed out hinge (3).

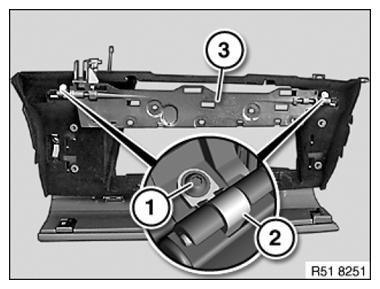

Fig 2: Identifying Glovebox Lid Hinge, Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Spring (1) must not be damaged.

If necessary, pull out shaft (2) and replace faulty bushings (4).

Markings (3) on bushing (4) and hinge must line up.

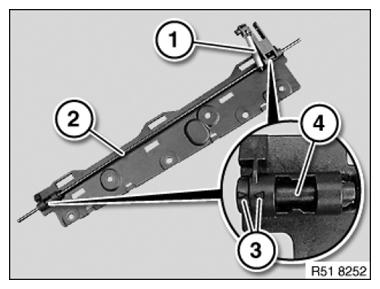

Fig 3: Identifying Spring, Shaft And Bushing With Marking
