51 16 371 Removing and installing/replacing upper glovebox lid

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Unclip trim (1) with special tool 00 9 322 towards bottom and feed out of glovebox lid (2).

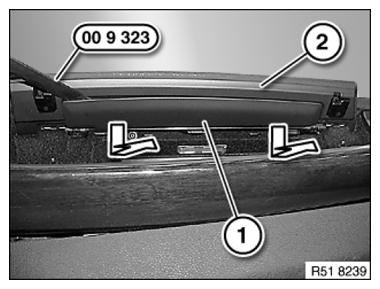

Fig 1: Removing Trim From Glovebox Lid Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) and catches (2) on trim (3) must not be damaged.

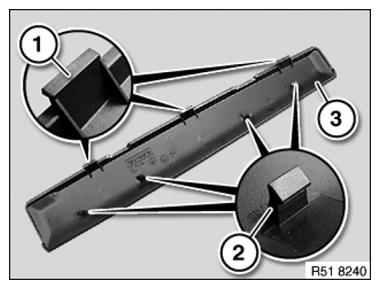

Fig 2: Identifying Trim, Guides And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed glovebox lid (2) out of hinge (3).

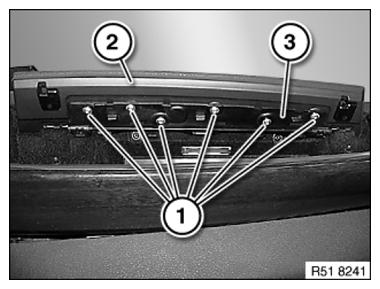

Fig 3: Identifying Glovebox Lid, Hinge And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Threads (1) and guides (2) on glovebox lid (3) must not be damaged.

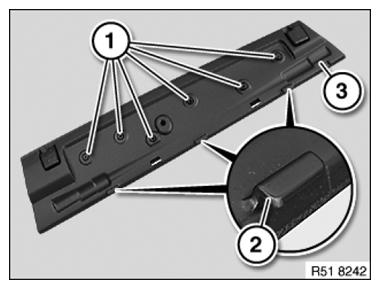

Fig 4: Identifying Glovebox Lid, Guides And Threads

Courtesy of BMW OF NORTH AMERICA, INC.
