51 16 227 Removing and installing/replacing trim on center console at side left or right
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
NOTE:
Driver's seat removed for purposes of clarity.

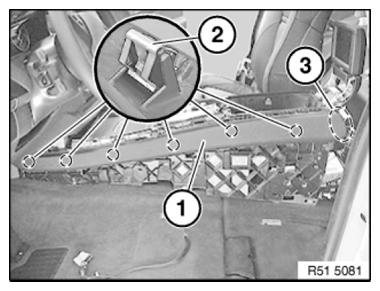

Lever trim (1) with a suitable tool out of center console.
Feed out trim (1) in area (3) towards rear.
Installation:
Replace faulty retainers (2).
Feed in trim (1) first in area (3), then press down in direction of center console.
