51 16 045 Removing and installing or replacing retaining ring on left or right exterior mirror
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove HOUSING ON OUTSIDE MIRROR .

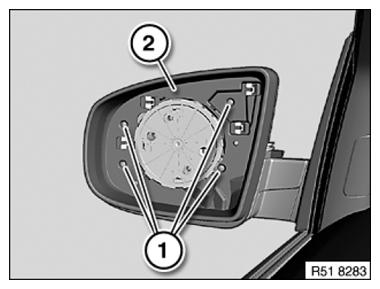

Release screws (1).
Feed out retaining ring (2).
Installation:
Ensure correct cable routing.
