51 16 040 Removing and installing/replacing housing on left or right outside mirror

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove MIRROR GLASS

NOTE: Housing (2) is secured without play by four multitooth catches (1) on retaining ring (3).
Secure housing on exterior mirror (2) against falling out.

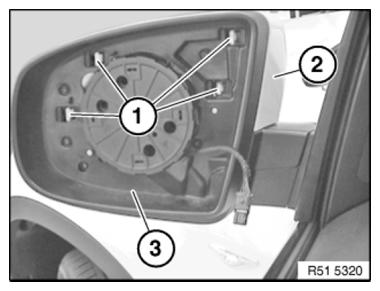

Fig 1: Identifying Exterior Mirror Housing, Multitooth Catches And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock multitooth catches (1) with a screwdriver.

Unclip housing (2) forwards from retaining ring (3) and remove.

Installation:

Multitooth catches (1) and guide (2) on housing (3) must not be damaged.

Fig 2: Identifying Outside Mirror Housing, Guide And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locators (1) on retaining plate (2) must not be damaged.

Fig 3: Identifying Retaining Plate And Locators

Courtesy of BMW OF NORTH AMERICA, INC.
