24 34 020 Replacing sealing sleeve for transmission housing (GA6HP26Z)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

24 2 390

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .
Use only approved transmission fluid.
Failure to comply with this requirement will result in serious damage to the automatic transmission!
See AUTOMATIC TRANSMISSION -- OPERATING FLUIDS .

Necessary preliminary tasks

Remove UNDERBODY PROTECTION .
Remove TRANSMISSION OIL SUMP .

IMPORTANT: Support transmission with workshop hoist.

Unlock and disconnect plug (1) by turning.

Fig 1: Disconnecting Connector

G08527497

Courtesy of BMW OF NORTH AMERICA, INC.

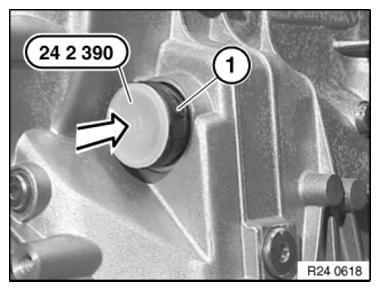

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 2: Inserting Special Tool (24 2 390) In Sealing Sleeve

G08527498

Courtesy of BMW OF NORTH AMERICA, INC.

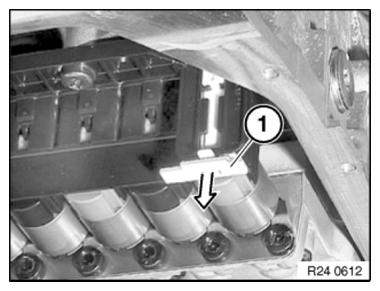

Unlock sealing sleeve with slide (1).

Fig 3: Sliding Sealing Sleeve

G08527499

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Note installation position of sealing sleeve.

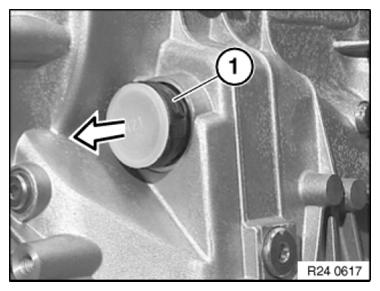

Pull out sealing sleeve (1).

Installation:

Screw in sealing sleeve partially (lug in upper area). Turn until lug engages in groove of transmission. Slide in sealing sleeve.

Lug on sealing sleeve must not be damaged!

Fig 4: Pulling Out Sealing Sleeve

G08527500

Courtesy of BMW OF NORTH AMERICA, INC.
