51 47 491 Removing and installing/replacing rear underbody protection

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustration created using X5 3.0i as an example. There may be differences in detail in the case of other models.

Release screws (1) and remove underbody protection (2).

Installation note:

Centre underbody protection (2) and tighten down screws (1).

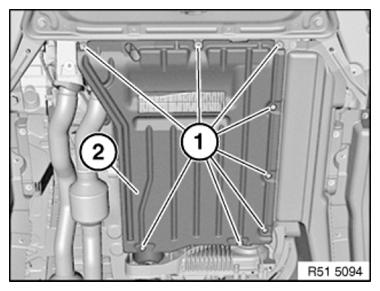

Fig 1: Identifying Underbody Protection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
