41 35 081 Removing And Installing Front Side Panel On Left

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Observe 41 00... BODY GAP DIMENSIONS .

IMPORTANT: Do not damage adjoining body components.

Necessary preliminary tasks:

Remove SIDE REPEATER .
Remove wheel arch covers. See REMOVING WHEEL ARCH COVER (FRONT SECTION) and REMOVING WHEEL ARCH COVER (REAR SECTION) .
Remove TRIM PANEL FOR COVER ON SIDE MEMBER .
Partially loosen BUMPER TRIM on the side.
Remove SEAL MOUNTING for engine compartment lid.

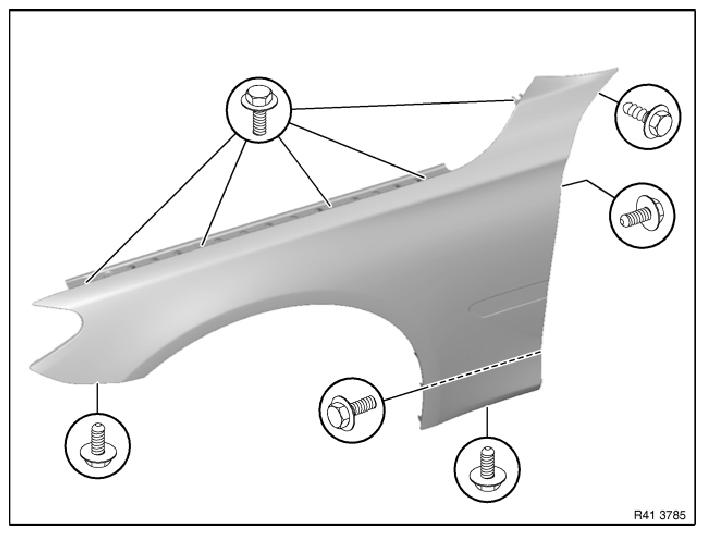

Fig 1: Identifying Trim Panel Screws

G08511138

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 41 35 1AZ .

Tightening torque 41 35 2AZ .

Replacement

Apply additional sealant to inside of front panel in area (1). Apply to area (1) based on shape of side wall to be replaced.

Material: SEALANT D1 (sourcing reference via BMW Parts Department).

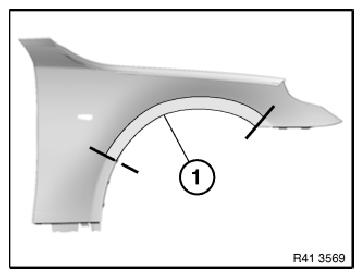

Fig 2: Identifying Sealant Applying Area On Front Panel

G08511139

Courtesy of BMW OF NORTH AMERICA, INC.

Only vehicles with park assistant

Repair work in area (1) is not permitted.

Replace side wall.

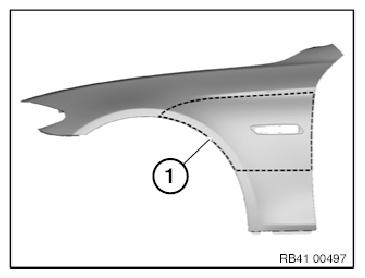

Fig 3: Identifying Side Panel Work Repaired Area

G08511140

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement , only Japan national version, F10/F11:

Replace wheel arch trim (1).

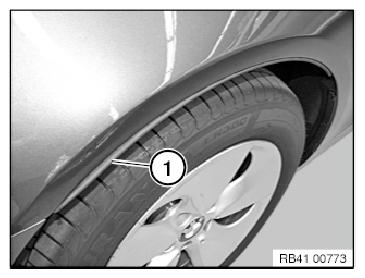

Fig 4: Identifying Wheel Arch Trim

G08511141

Courtesy of BMW OF NORTH AMERICA, INC.
