41 12 651 Replacing Left Luggage Compartment Floor Section (Tail Panel Or Side Wall Removed): Notes

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Observe procedures for REPAIR STAGE 2 .

STRIP DOWN VEHICLE

The following new body parts are required :

Following CONSUMABLES  are required:

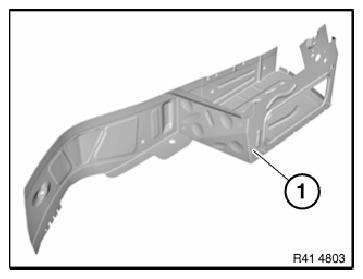

Fig 1: Identifying Left Section Luggage Compartment Floor
G08510919Courtesy of BMW OF NORTH AMERICA, INC.
Material Quantity
Adhesive K5a 1
Blind rivets N3 25
EMC screws 4
Cleaning agent R1 1
Sealant D1

Removal of luggage compartment floor

For purposes of clarity, graphic shows most of the tail panel removed.

Open welded connections in area (1).

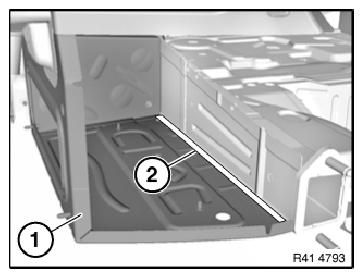

Fig 2: Identifying Boot Floor And Bore Hole Area
G08510920Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Fig 3: Identifying Welded Connections Area
G08510921Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

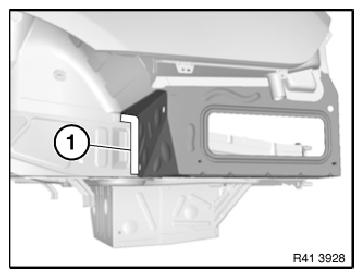

Fig 4: Identifying Welded Connections Area
G08510922Courtesy of BMW OF NORTH AMERICA, INC.

Separate welded connections in area (1) from inside.

Remove the luggage compartment floor.

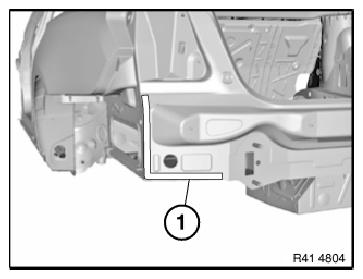

Fig 5: Identifying Luggage Compartment Floor Welded Connections Area
G08510923Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Open welded connections in area (1).

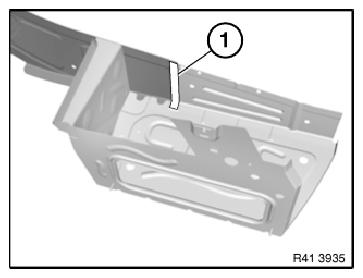

Fig 6: Identifying Welded Connections Area
G08510924Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove metal section (2).

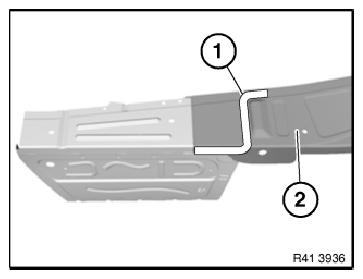

Fig 7: Identifying Metal Section And Welded Connections Area
G08510925Courtesy of BMW OF NORTH AMERICA, INC.

Adjust and secure the luggage compartment floor (1).

Set 5 4.2 mm dia. bore holes in area (2).

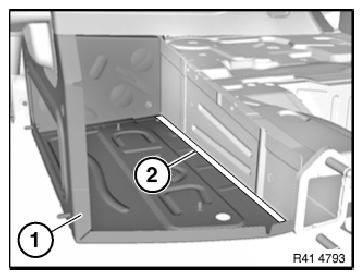

Fig 8: Identifying Boot Floor And Bore Hole Area
G08510926Courtesy of BMW OF NORTH AMERICA, INC.

Set 3 4.2 mm dia. bore holes in area (1).

Fig 9: Identifying Welded Connections Area
G08510927Courtesy of BMW OF NORTH AMERICA, INC.

Set 11 4.2 mm dia. bore holes in area (1).

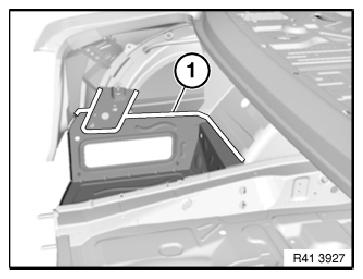

Fig 10: Identifying Welded Connections Area
G08510928Courtesy of BMW OF NORTH AMERICA, INC.

Set six 4.2 mm dia. bore holes in area (1).

Remove new parts and deburr bore holes.

Fig 11: Identifying Luggage Compartment Floor Welded Connections Area
G08510929Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind new part and body in area of bonding surfaces.

Installation of luggage compartment floor

Clean all  bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive on all bonding and riveting surfaces.

Install new part and rivet with blind rivets.

When installing the new part, make sure that all bonding surfaces have sufficient adhesive.

After hardening of the adhesive install 4 EMC SCREWS  in the areas (1).

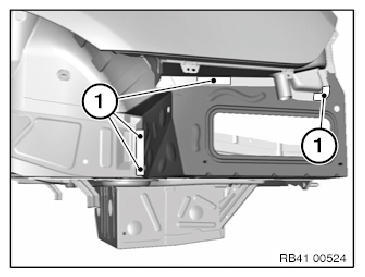

Fig 12: Identifying Adhesive Applying Areas On EMC Screws
G08510930Courtesy of BMW OF NORTH AMERICA, INC.
