41 12 651 Stripping Operations - Replacing Left Luggage Compartment Floor (Tail Panel Or Side Wall Removed)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Disconnect negative battery cable
- Remove rear left wheel arch cover
- Remove exhaust system
- Remove heat shield
- Remove left luggage compartment floor trim panel
- Remove left luggage compartment wheel arch panel

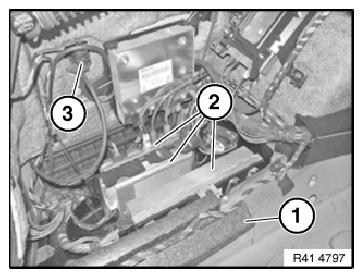

Release holder (1) for wiring harness and lay to one side.
Release holder for control units (2).
Disconnect plug connections and remove control units (2).
Remove tank venting valve (3).

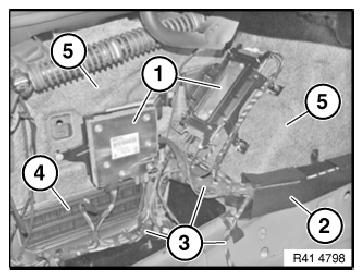

Release holder for control units (1).
Disconnect plug connections and remove control units (2).
Release cable channel (2) and wiring harness (3) and place to one side.
Release latch mechanisms and remove rear ventilation (4).
Remove soundproofing (5).
Installation note:
The rear ventilation (4) must not be damaged. (watertightness).
All latch mechanisms must engage audibly.
