51 46 028 Removing and installing/replacing rear air outlet trim
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove panel for rear window shelf. See REMOVING TRIM PANEL FOR STORAGE SHELF or REMOVING TRIM PANEL FOR STORAGE SHELF (WITH ROLLER SUNBLIND) .

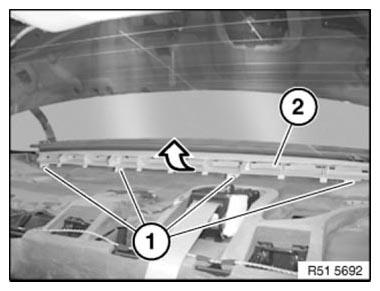

Release screws (1) and feed out air outlet trim (2) towards front.
Installation:
Make sure air outlet trim (2) is correctly seated in associated guides.
Installation:
Guides (1) must not be damaged.
