51 16 365 Removing and installing/replacing glovebox cover

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT GLOVEBOX WITH HOUSING .

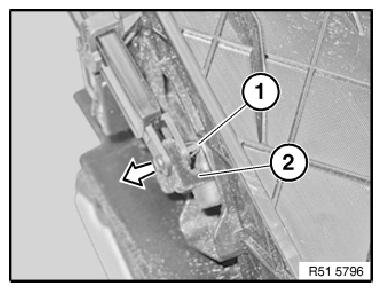

Release locking pin (1) and press out of glovebox guide (2) in direction of arrow.

Fig 1: Removing Locking Pin From Glovebox Guide

Courtesy of BMW OF NORTH AMERICA, INC.

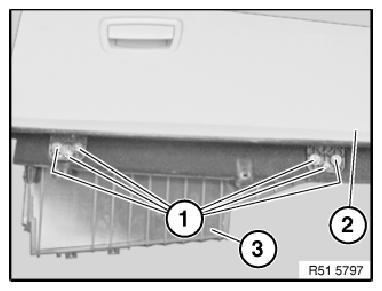

Release screws (1).

Remove glovebox cover (2) from glovebox housing (3).

Fig 2: Identifying Glovebox Cover, Glovebox Housing And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

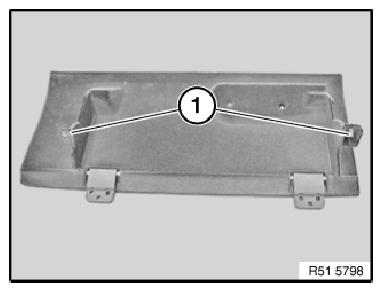

Make sure glovebox cover (1) is correctly guided.

Fig 3: Identifying Glovebox Cover

Courtesy of BMW OF NORTH AMERICA, INC.
