51 16 366 Removing and installing/replacing right glovebox with housing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove UPPER INSTRUMENT PANEL STORAGE COMPARTMENT .
Remove bottom left TRIM PANEL FOR PEDAL MECHANISM .
Remove USB INTERFACE CONNECTING SOCKET .

Release screw (1) on glovebox (2) at top.

Tightening torque 51 16 16AZ .

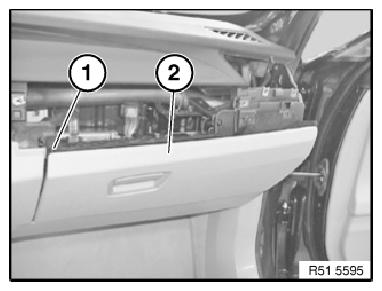

Fig 1: Identifying Glovebox And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on glovebox (2) at bottom.

Tightening torque 51 16 16AZ .

Remove glovebox (2) in direction of arrow.

Disconnect plug connection behind.

Replacement:

Remove GLOVEBOX LIGHT .

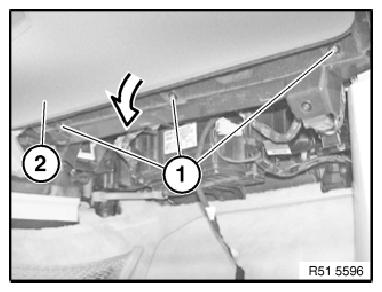

Fig 2: Removing Glovebox
Courtesy of BMW OF NORTH AMERICA, INC.
