51 16 282 Removing and installing/replacing left or right lower housing section (up to 07/12)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove PROTECTIVE CAP ON LEFT EXTERIOR MIRROR .

Release screws (1).

Pull off lower housing section (2) towards rear.

Installation note:

Make sure lower housing section (2) is correctly seated in area (3).

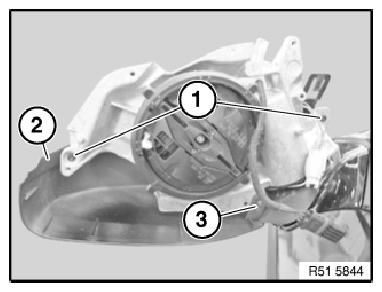

Fig 1: Identifying Lower Housing Section And Screws

G08511427

Courtesy of BMW OF NORTH AMERICA, INC.

Version with exterior mirror camera:

Release screw (1) and feed out holder (2).

Installation note:

Small image with view of rear.

Holder (2) must be correctly seated in guides (3).

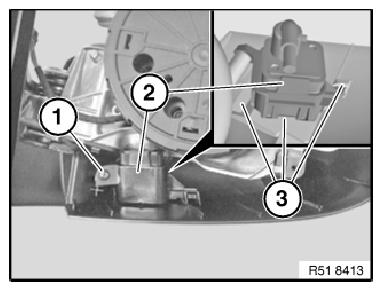

Fig 2: Identifying Holder, Guides And Screw

G08511428

Courtesy of BMW OF NORTH AMERICA, INC.

Fold exterior mirror (1) back.

Lift protective cap (2) downwards over latch mechanism (3).

Feed protective cap (2) in direction of arrow out of exterior mirror (1).

NOTE: Protective cap (2) must be bent slightly during removal.

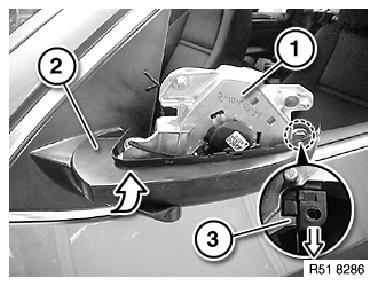

Fig 3: Lifting Protective Cap From Latch Mechanism

G08511429

Courtesy of BMW OF NORTH AMERICA, INC.
