51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary work:

Remove MIRROR GLASS .

Release cover cap (2) at catches (1) using suitable tool (3).

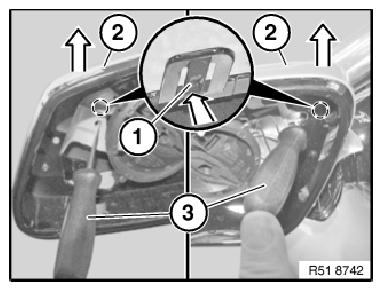

Fig 1: Removing Cover Cap Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cover cap (2) against falling off.

Release catch (1) using special tool 00 9 317 and carefully pull cover cap (2) upwards and remove.

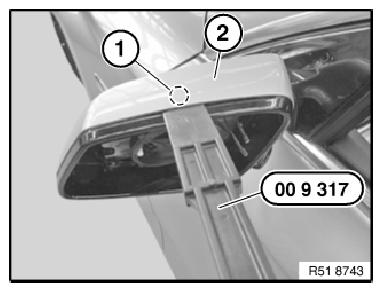

Fig 2: Removing Catch Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) and guides (2) on cover cap (3) must not be damaged.

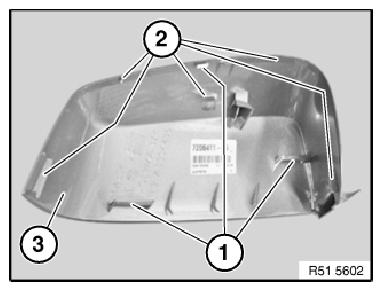

Fig 3: Identifying Catches, Guides And Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.
