51 16 163 Removing and installing/replacing rear center console cover

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Move front seats forwards.
Remove SIDE TRIM PANELS ON CENTER CONSOLE .

Release screws (1) on left and right sides.

Detach rear center console cover (2) in direction of arrow.

Unlock plug connections behind and disconnect.

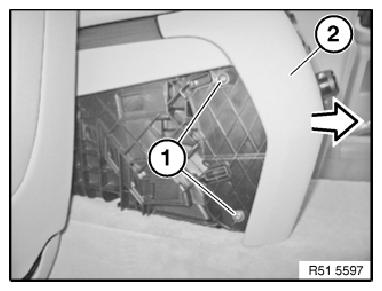

Fig 1: Removing Rear Center Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove fresh air grille in rear passenger compartment. See REMOVING FRESH-AIR GRILLE (BASIC A/C SYSTEM) or REMOVING FRESH-AIR GRILLE (HIGH A/C SYSTEM) .
Remove REAR A/C SYSTEM CONTROL PANEL .
Remove LOWER REAR CENTER CONSOLE COVER .
