64 22 191 Removing and installing/replacing rear cabin fresh-air grille (High A/C system)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR A/C SYSTEM CONTROL PANEL .

Release screws (1).

Carefully press rear cabin fresh-air grille (2) forwards out of center console trim (3).

Fig 1: Identifying Rear Cabin Fresh-Air Grille And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

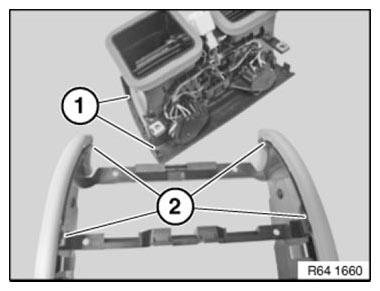

Retaining lugs (1) must be correctly seated in associated guides (2) and must not be damaged.

Fig 2: Identifying Retaining Lugs And Associated Guides

Courtesy of BMW OF NORTH AMERICA, INC.
