51 16 040 Removing and installing/replacing housing on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RETAINING RING ON EXTERIOR MIRROR .
Remove PROTECTIVE CAP ON EXTERIOR MIRROR .
Remove MIRROR ADJUSTMENT DRIVE .

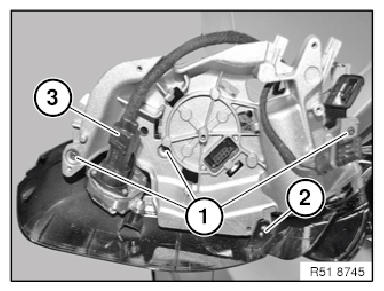

Release screws (1).

If necessary, disconnect the connector (3) from the Top View camera.

Installation note:

Ensure latch mechanism (2) is correctly seated.

Fig 1: Removing Latch Mechanism, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

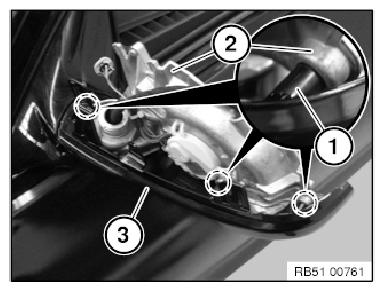

Carefully loosen screw holes (1) from exterior mirror (2).

Feed out housing (3) downward.

Fig 2: Identifying Exterior Mirror, Housing And Screw Holes

Courtesy of BMW OF NORTH AMERICA, INC.

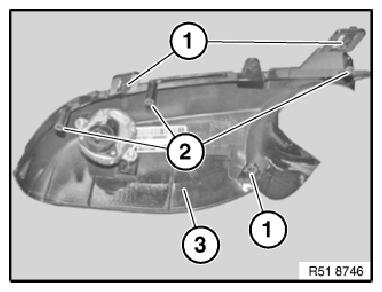

Catches (1) and screw holes (2) on housing (3) must not be damaged.

For replacement with Top View camera version

Move TOP VIEW CAMERA .

Fig 3: Identifying Catches, Screw Holes And Housing
Courtesy of BMW OF NORTH AMERICA, INC.
