64 53 521 Replacing safety pressure switch (N63)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Danger of injury!

Refrigerant circuit is under high pressure!

Avoid contact with refrigerant and refrigerant fluid.

Read and comply with SAFETY INFORMATION .

IMPORTANT: Risk of damage!

Restart engine only when air conditioning system has been correctly filled.

Follow notes for OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT .

If air conditioning system is opened for more than 24 hours:

Replace desiccant insert for A/C system. See REPLACING DESICCANT INSERT  or REPLACING DESICCANT INSERT (CAPACITOR REMOVED) .

Necessary preliminary work:

Release screws (1).

Tightening torque 12 90 2AZ .

Remove electronics box cover (2).

Fig 1: Identifying Electronics Box Cover And Screws
G06888959Courtesy of BMW OF NORTH AMERICA, INC.

Unclip and unplug all connectors (1) from control units.

Unclip grommet hold-down device (2) and remove.

Detach rubber grommets (3) from electronics box.

Place wiring harnesses to the side.

Installation note:

Make sure grommets are is correctly seated (watertightness).

Fig 2: Identifying Connectors, Grommet Hold-Down Device And Rubber Grommets
G06888960Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove lead (2) from connecting piece.

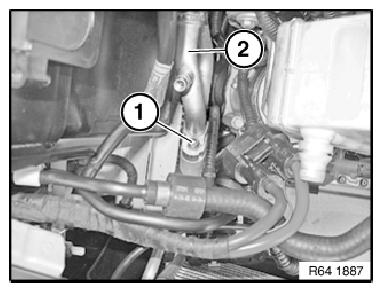

Fig 3: Identifying Lead And Screws
G08514291Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release safety pressure switch (2).

Tightening torque 64 53 8AZ .

Fig 4: Identifying Plug Connection And Safety Pressure Switch
G06886390Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
