51 43 255 Removing and installing/replacing trim for rear left or right roof pillar (front)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow safety instructions for working on cars with airbag systems. Refer to 51 00 ... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS .

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

Necessary Preliminary Tasks:

Remove trim for rear roof pillar (rear). Refer to 51 43 251 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (REAR) .

Detach expansion rivets (1) and clips (2) from trim (3). Pull out trim (3) inwards/upwards.

Installation:

If necessary, replace faulty clips (2) or expansion rivets (1).

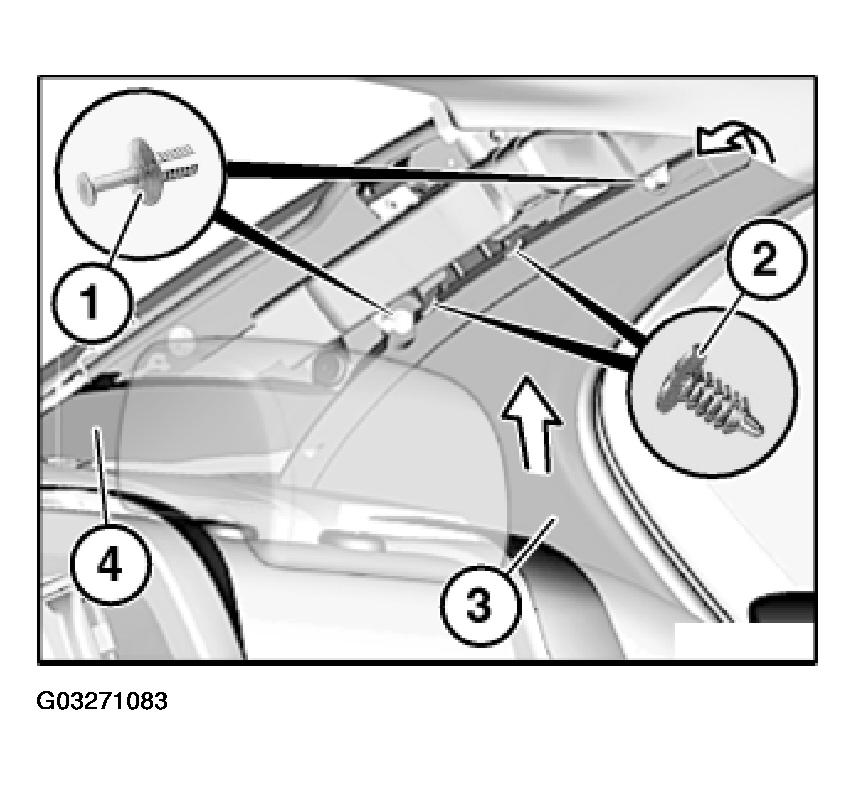

Fig 1: Locating Expansion Rivets And Clips In Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of trim (2) must not be damaged or missing:

Insulating mat.
Bores.
Grommet.
Retainer.

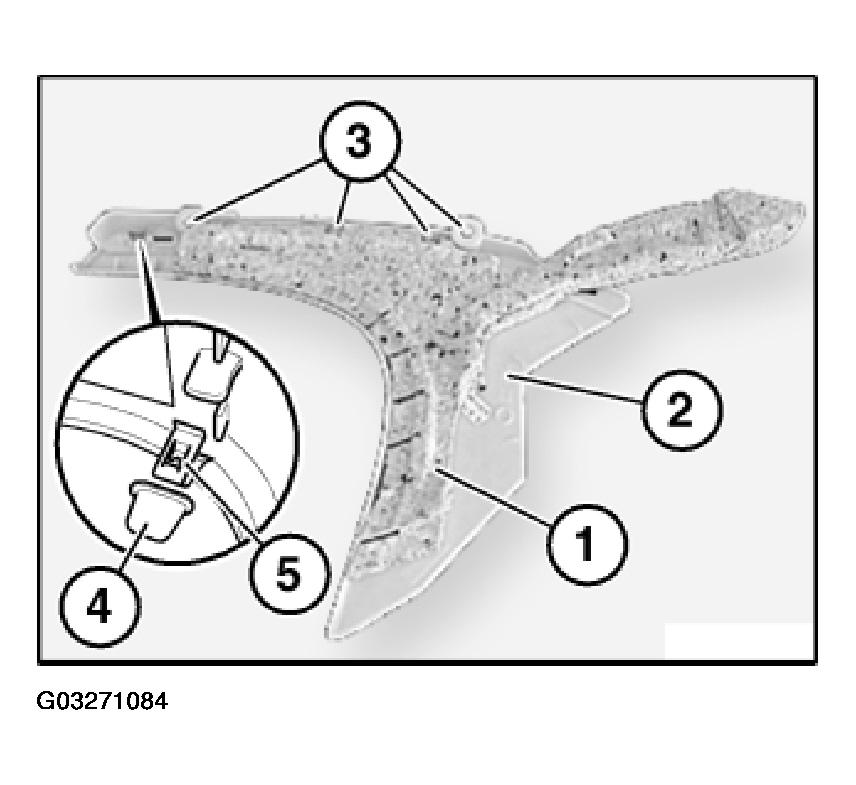

Fig 2: Identifying Trim Components
Courtesy of BMW OF NORTH AMERICA, INC.
