51 43 251 Removing and installing/replacing trim for rear left or right roof pillar (rear)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow safety instructions for working on cars with airbag systems. Refer to 51 00 ... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS .

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

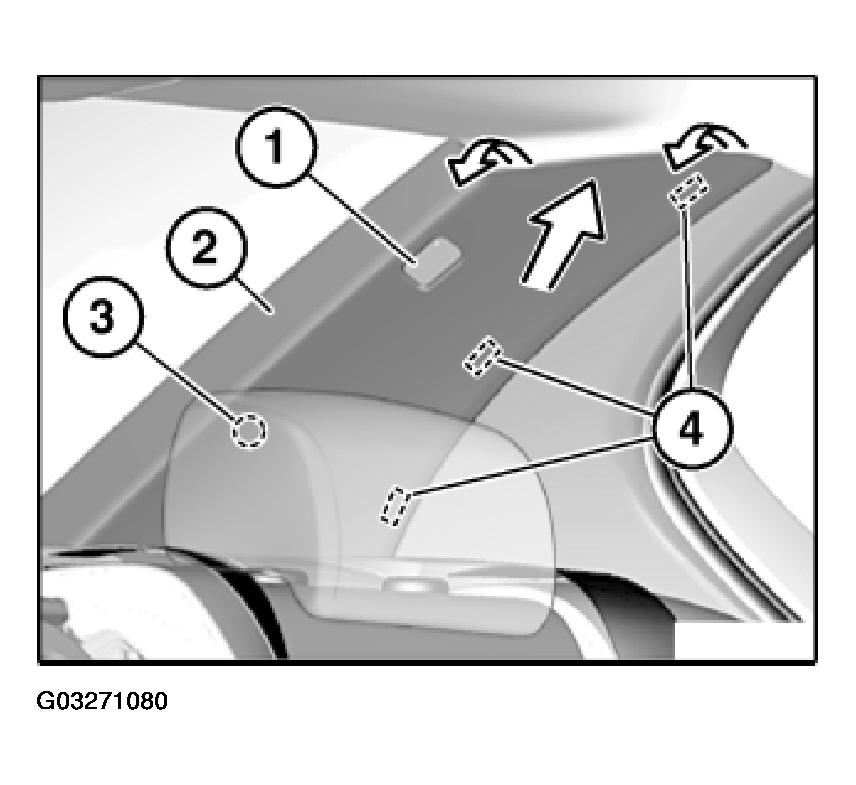

Lever out airbag emblem (1) and release screw underneath.

Installation:

Tightening torque, refer to 51 43 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

Unclip clip (3) and clips (4) of trim (2) and pull out trim (2) inwards and upwards.

Fig 1: Removing Airbag Emblem

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

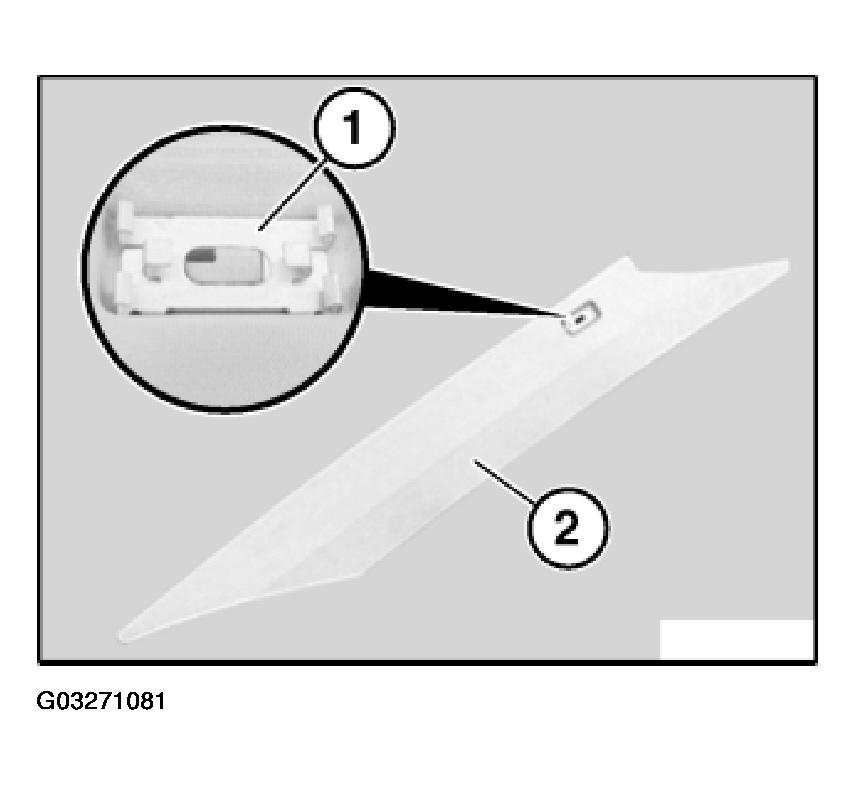

Retainer (1) on trim (2) must not be damaged or missing.

Fig 2: Locating Trim Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

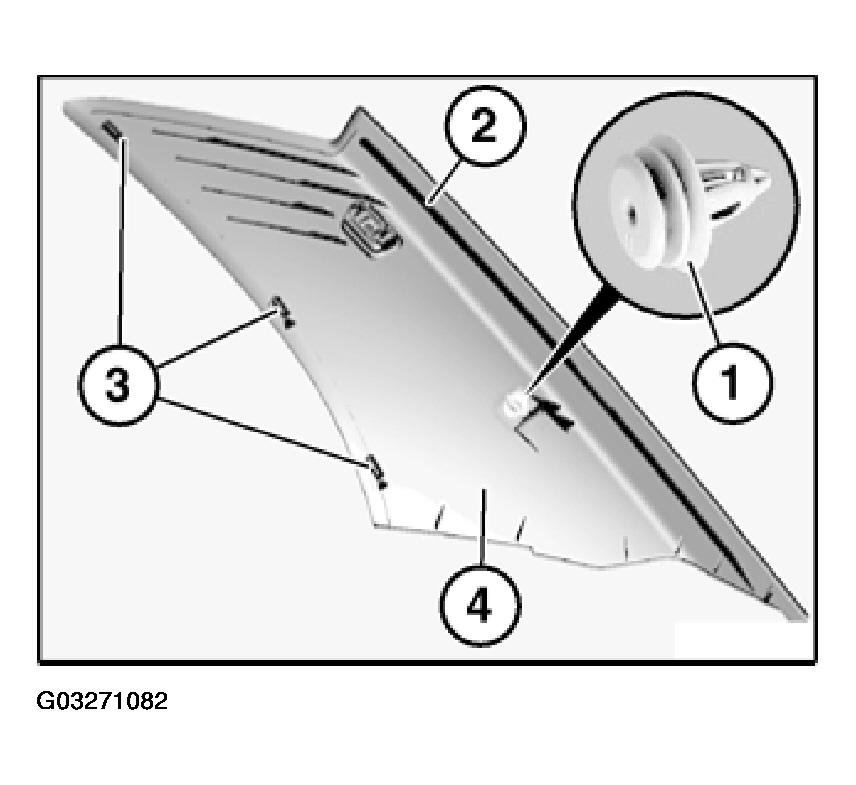

Following parts of trim (4) must not be damaged or missing:

Clip.
Guide.
Clips.

Fig 3: Identifying Clips And Guides
Courtesy of BMW OF NORTH AMERICA, INC.
