51 43 148 Removing and installing or replacing trim on left or right door pillar (top)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove panel for door pillar (bottom). Refer to 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM) .
Release seat belt screw on front seat.

Release clips (1).

Pull off panel (2) towards bottom.

Separate webbing.

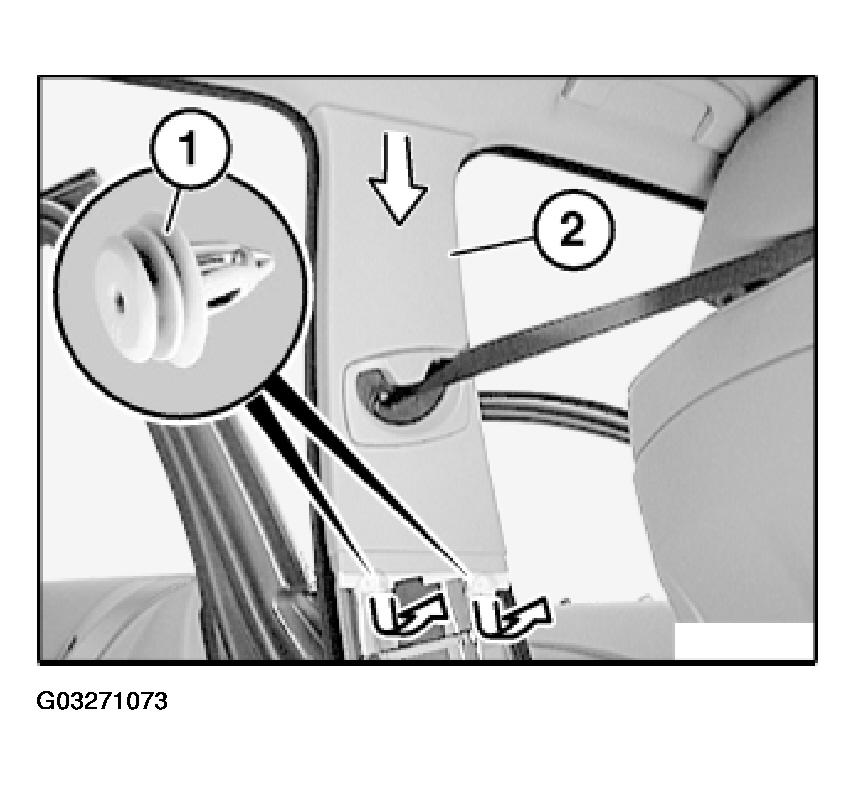

Fig 1: Removing Door Pillar Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of trim (1) must not be damaged or missing:

2) Guides.

3) Clips.

Fixtures for expansion rivets.
Belt finisher strip.

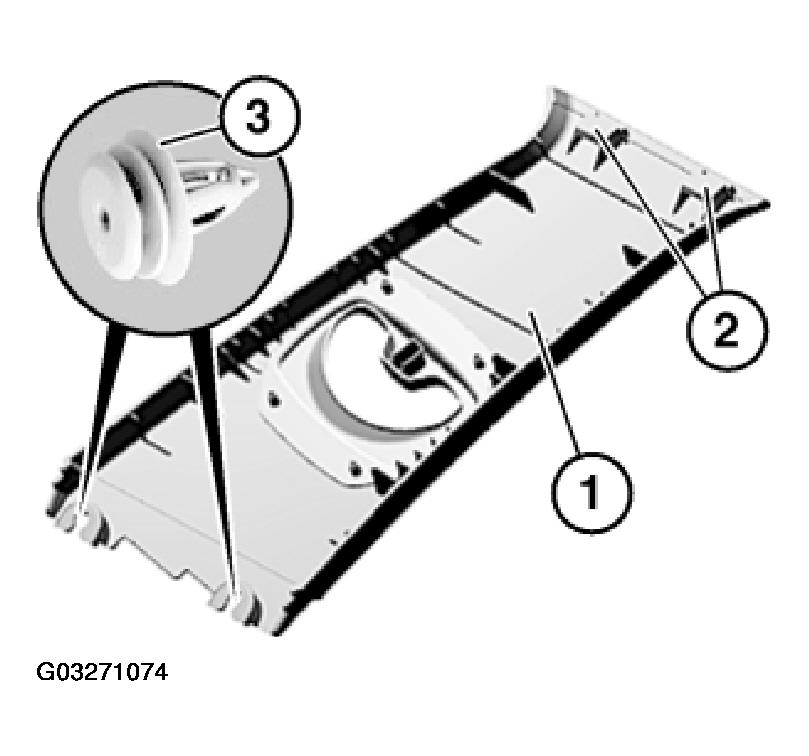

Fig 2: Identifying Clips And Guides
Courtesy of BMW OF NORTH AMERICA, INC.
