51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 341

Necessary Preliminary Tasks:

Remove front entrance cover strip.

Partially detach mucket in area of B-pillar trim.

Insert special tool 00 9 341 under rear entrance cover strip (inside).

Unclip trim for door pillar (2) by pulling inwards (1), then pull downwards to remove.

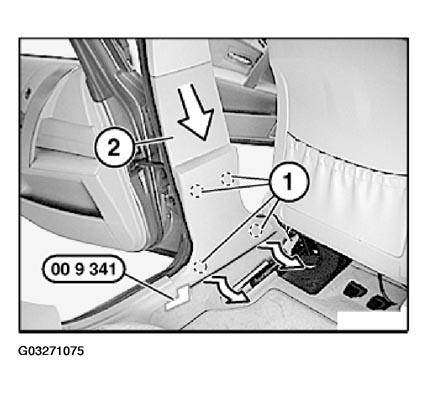

Fig 1: Inserting Special Tool Under Rear Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of trim for door pillar (1) must not be damaged or missing:

Clips.
Hooks.
Guides.

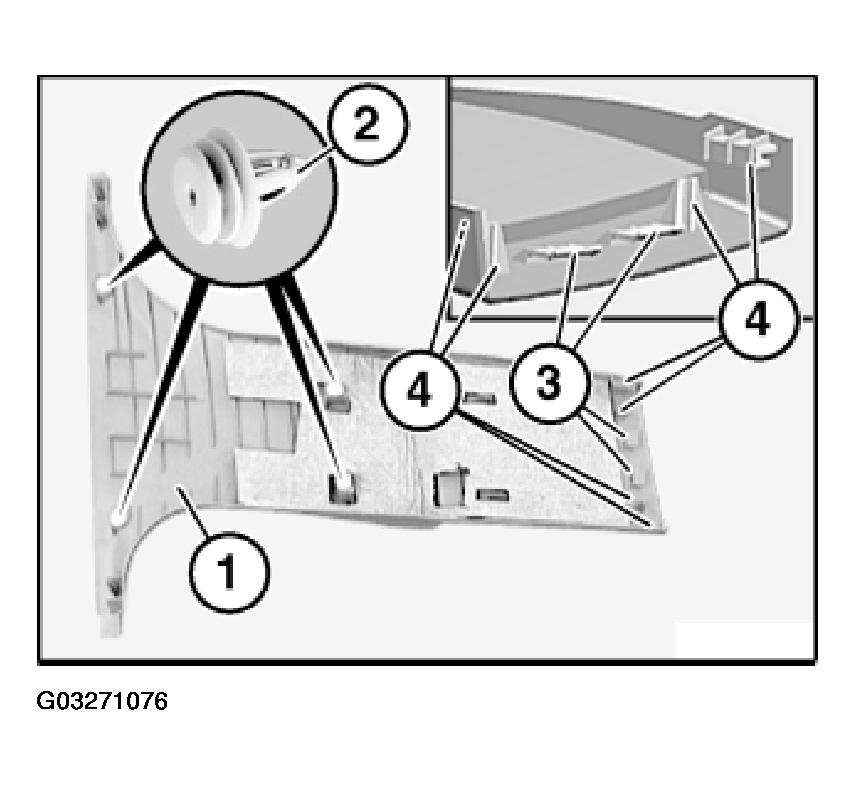

Fig 2: Identifying Clips, Hooks And Guides
Courtesy of BMW OF NORTH AMERICA, INC.
