51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front entrance cover strip (inside). Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .

Release door mucket (1) in area of footwell side trim panel on A-pillar on right (2).

Unclip footwell side trim panel on A-pillar on right (2) in direction of arrow from retaining points (3).

Remove footwell side trim panel on A-pillar on right (2).

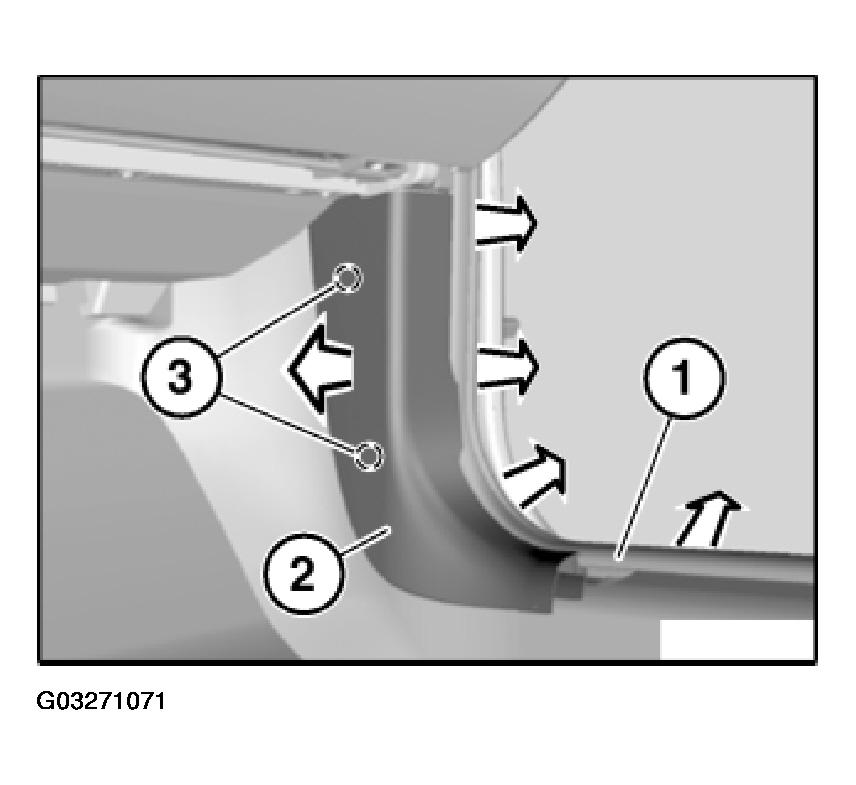

Fig 1: Removing Footwell Side Trim Panel On A-Pillar On Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clips (1) remaining in bores.

If necessary, replace faulty clips (1).

Place footwell side trim panel on A-pillar on right (2) preinstalled with clips (1) on associated bores and clip into place.

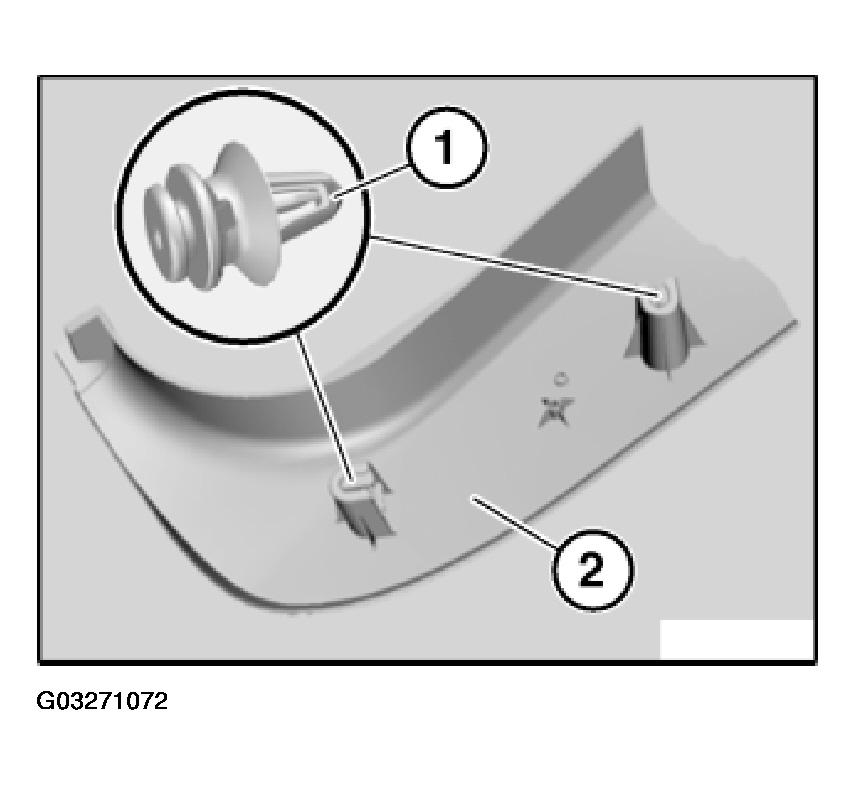

Fig 2: Locating Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
