51 47 000 Removing and installing/replacing front (inside) left or right entrance cover strip

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Disengage retaining lugs (5) of front entrance cover strip (2) from both adjoining panels.

IMPORTANT: Carefully lever out front entrance cover strip (2).

Lever out front entrance cover strip (2) at front retaining points (3).

Pull back front entrance cover strip (2) and feed out of rear retaining points (1).

Installation:

Position front entrance cover strip (2) preinstalled with clips (4) on associated bores and clip into place.

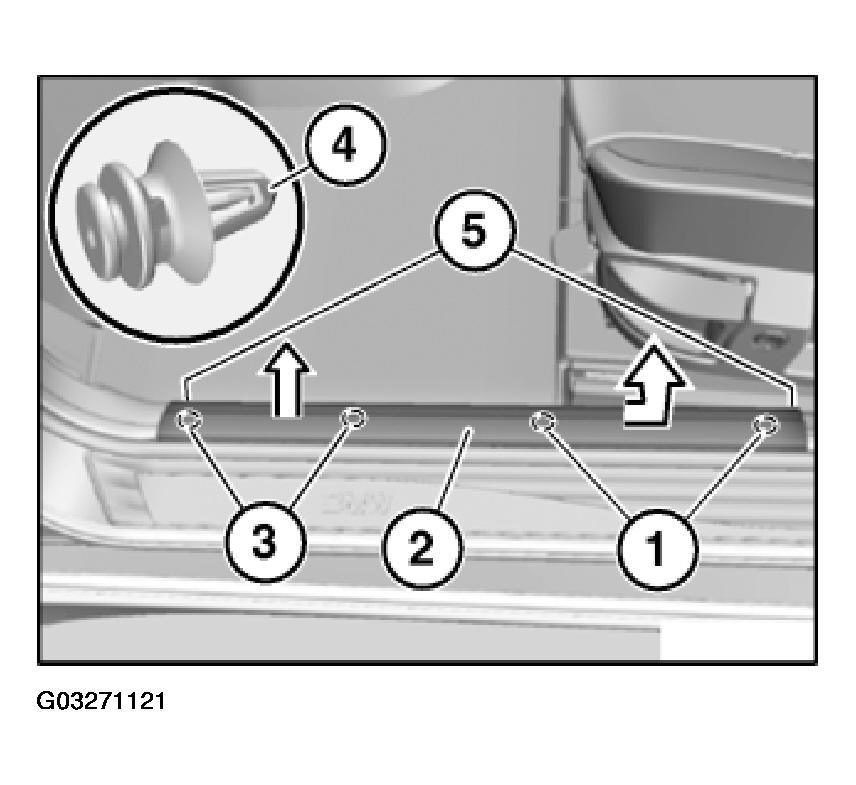

Fig 1: Identifying Lugs For Front Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rails of front entrance cover strip (2) must not be damaged. Retaining lugs (3) of front entrance cover strip (2) must not be damaged.

If necessary, lever out remaining clips (1) in floor panel.

If necessary, replace faulty clips (1).

Slide clips (1) into rails of front entrance cover strip (2).

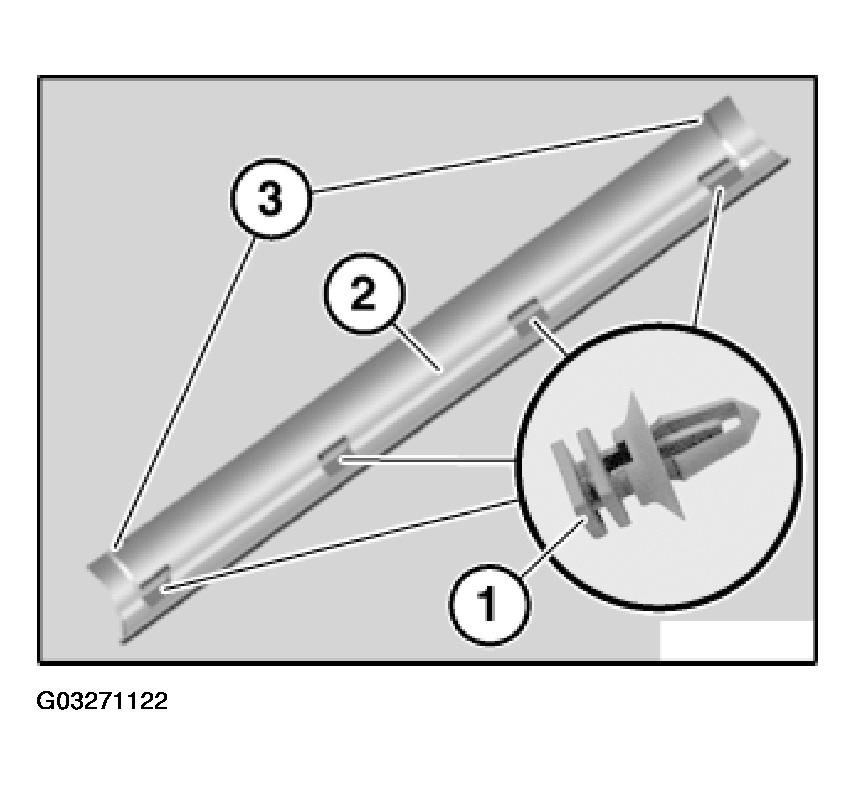

Fig 2: Locating Retaining Clips For Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
