51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front entrance cover strip (inside). Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .

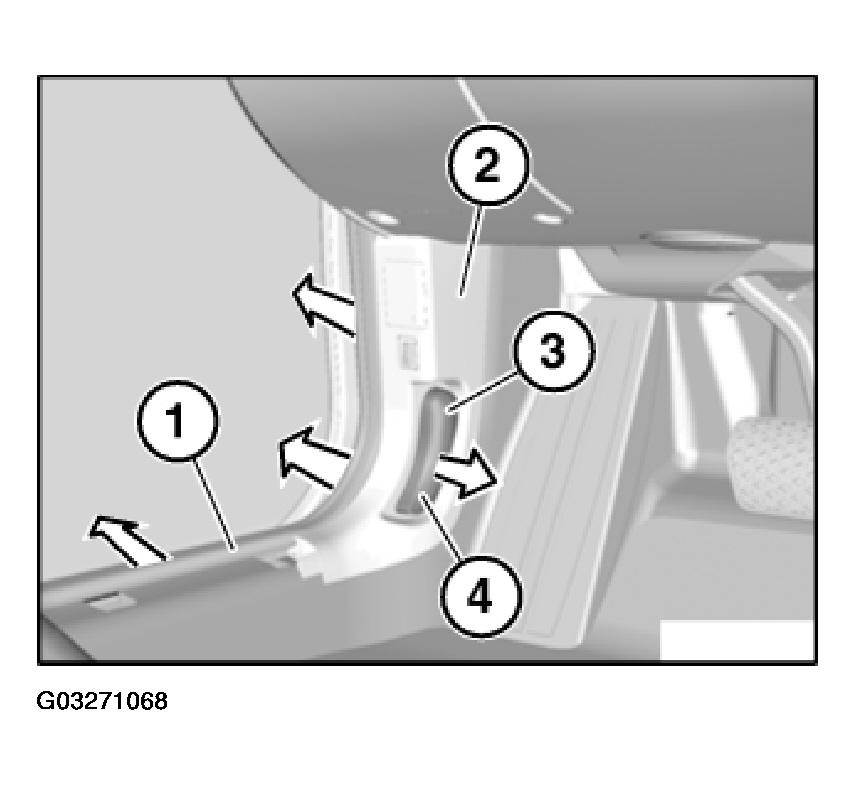

Release door mucket (1) in area of footwell side trim panel on A-pillar on left (2).

Unscrew bolt (3).

Remove engine hood actuator lever (4) from footwell side trim panel on A-pillar on left (2).

Fig 1: Locating Door Mucket

Courtesy of BMW OF NORTH AMERICA, INC.

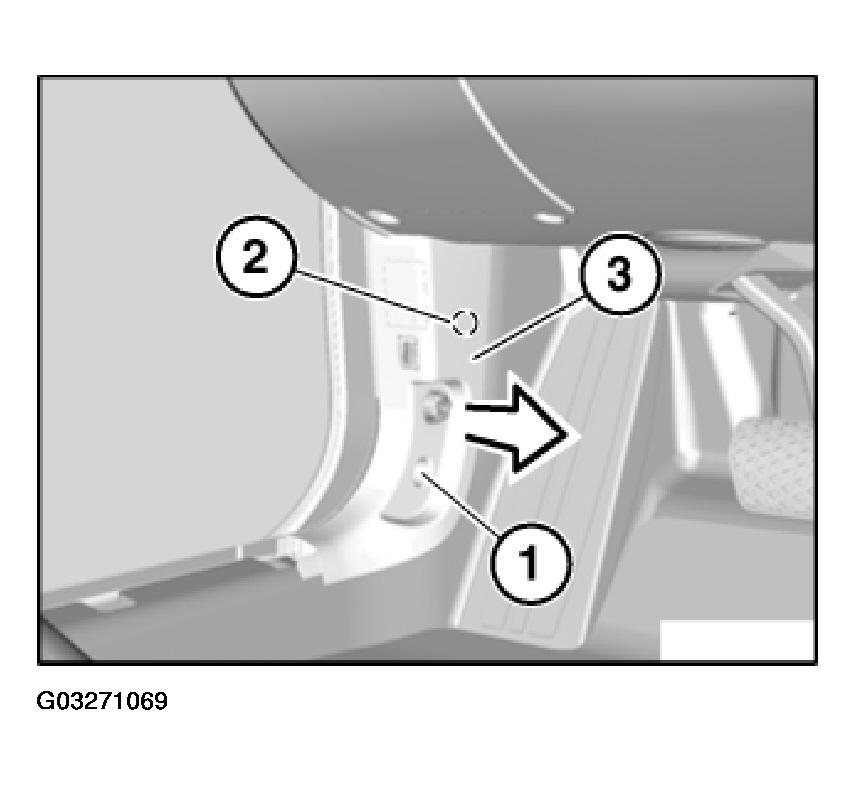

Unscrew bolt (1).

Unclip footwell side trim panel on A-pillar on left (3) in direction of arrow from retaining point (2) and remove.

Fig 2: Identifying Footwell Side Trim Panel Retaining Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

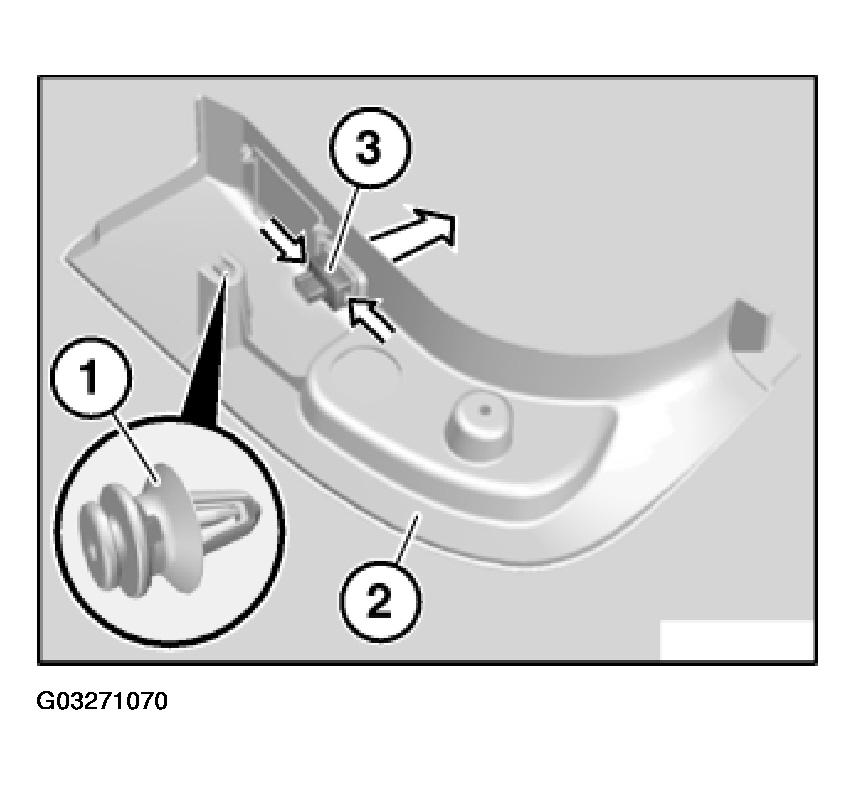

If necessary, lever out clip (1) remaining in bore.

If necessary, replace faulty clip (1).

Place footwell side trim panel on A-pillar on left (2) preinstalled with clip (1) on associated bore and clip into place.

Replacement:

Press catches and remove switch for unlocking rear lid (3).

Fig 3: View Of Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.
