51 16 366 Removing and installing right glovebox with housing

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove footwell side trim panel on A-pillar on right. Refer to 51 43 075 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT .
If necessary, remove trim for instrument panel at bottom right. Refer to 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .

NOTE: Open glovebox.

Unclip pin (1) from retaining strap (2).

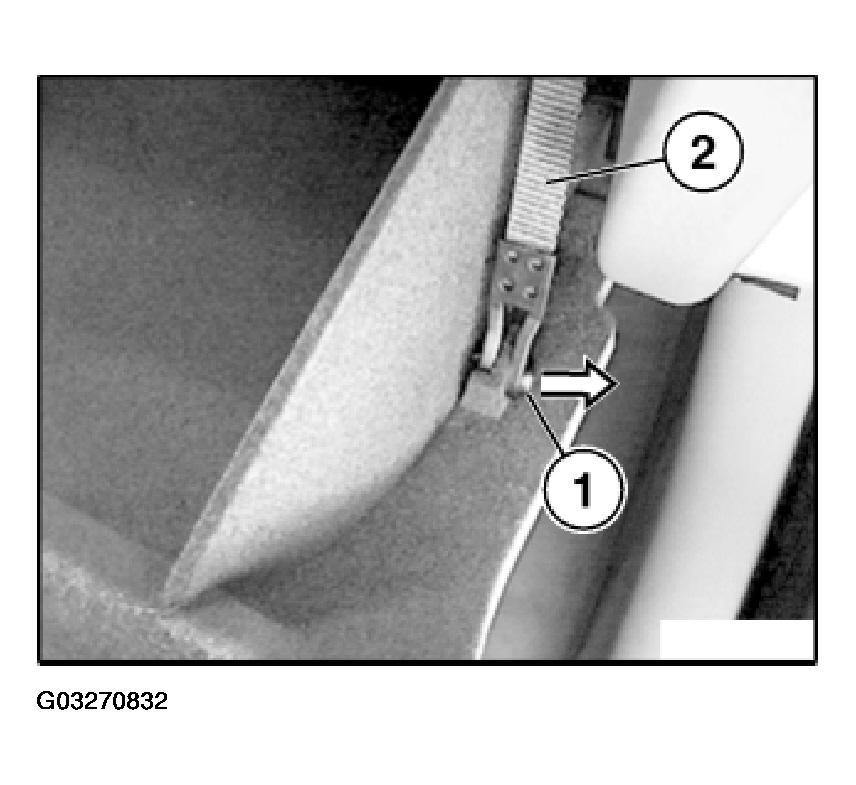

Fig 1: Removing Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip pin (1) from shock absorber (2).

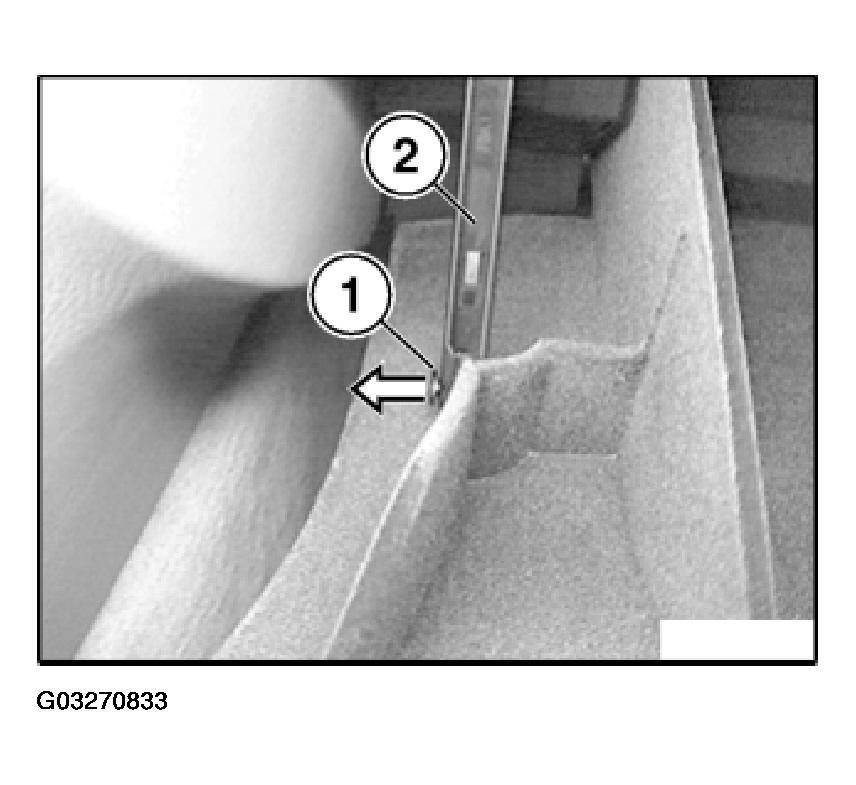

Fig 2: Removing Pin From Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release screws (2) and pull back right glovebox with housing (3).

Disconnect associated plug connections and remove right glovebox with housing (3).

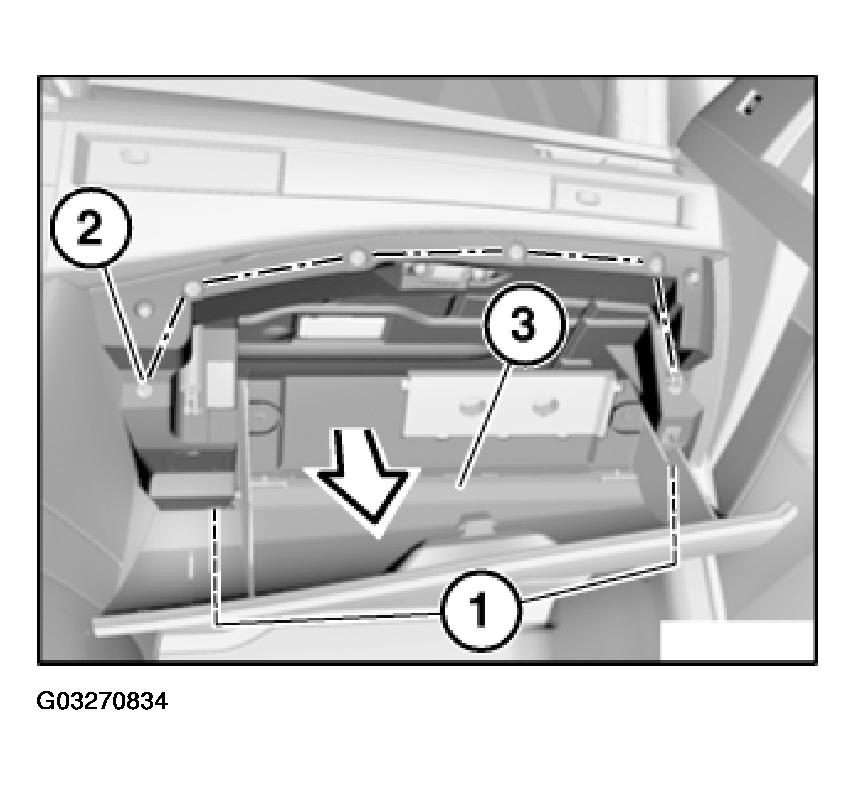

Fig 3: Locating Glovebox Retaining Screws
