51 21 233 Removing and installing/replacing Bowden cable for outside door handle on left or right front door
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove carrier for outside door handle. Refer to 51 21 125 REMOVING AND INSTALLING/REPLACING CARRIER FOR LEFT OR RIGHT OUTSIDE DOOR HANDLE WITH LOCK CYLINDER .

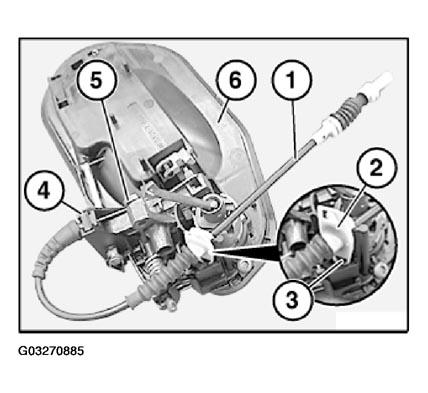

Lever holder (2) out of catch (3).
Disconnect Bowden cable (1) from fixtures (4 and 5) and detach from carrier (6).
