51 21 125 Removing and installing/replacing carrier for left or right outside door handle with lock cylinder

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove cover on outside handle. Refer to 51 21 180 REMOVING AND INSTALLING/REPLACING COVER ON OUTSIDE HANDLE .
Disconnect Bowden cable from door lock. Refer to 51 21 090 REMOVING AND INSTALLING/REPLACING DOOR LOCK IN LEFT OR RIGHT FRONT DOOR .
Driver's side only:
Remove door lock on front door. Refer to 51 21 090 REMOVING AND INSTALLING/REPLACING DOOR LOCK IN LEFT OR RIGHT FRONT DOOR .

NOTE: Version with Comfort Access/CA: CA sensor (4) must not be damaged.

Unlock catches (2) on carrier (1).

Press lock cylinder (4) behind door outer skin (3).

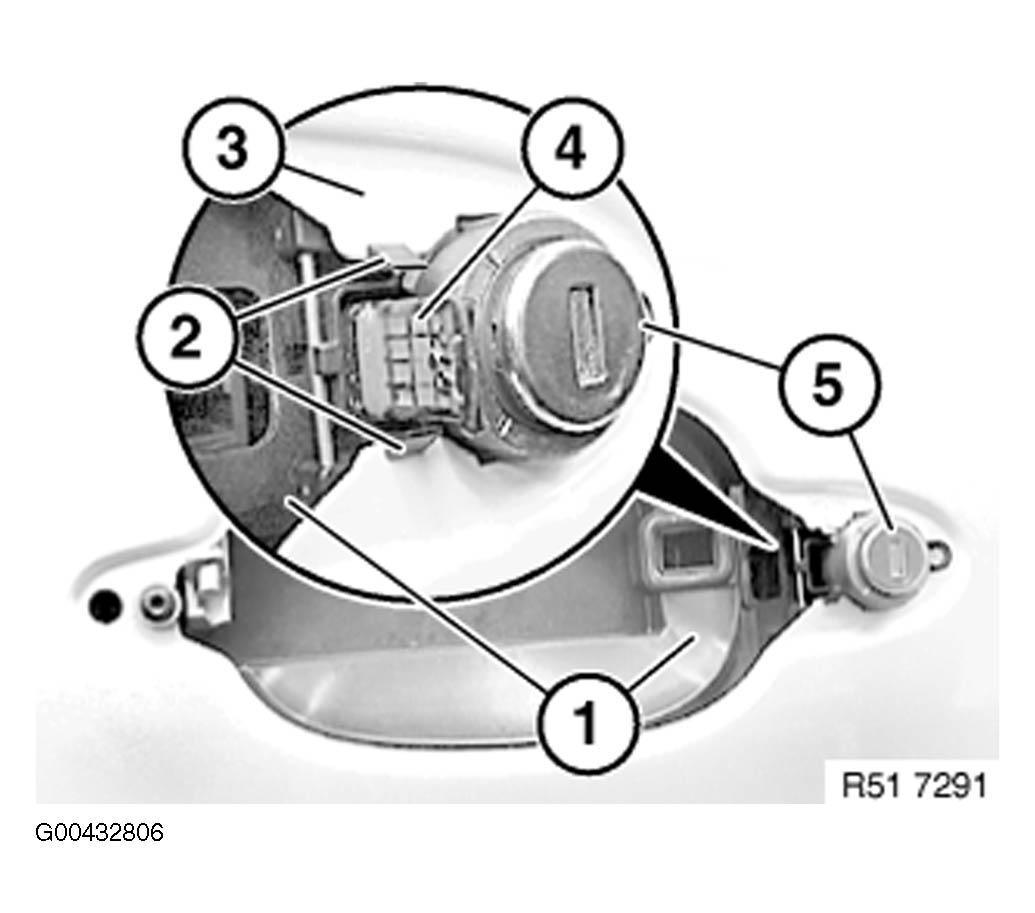

Fig 1: Locating CA Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug on CA module.

Pull carrier (3) towards rear/top until screw (1) of sheet metal slot (2) is free.

Remove carrier (3) for outside door handle.

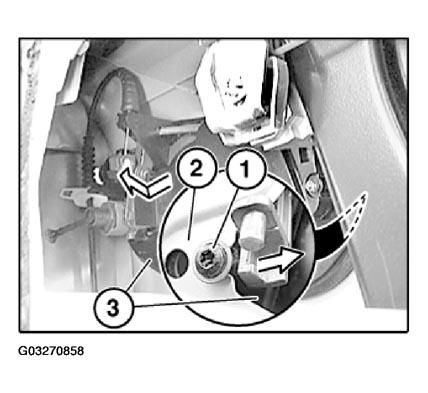

Fig 2: Removing Carrier For Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on carrier (3) must not be damaged.

IMPORTANT: Water drainage channel (2) must not be fouled/clogged.

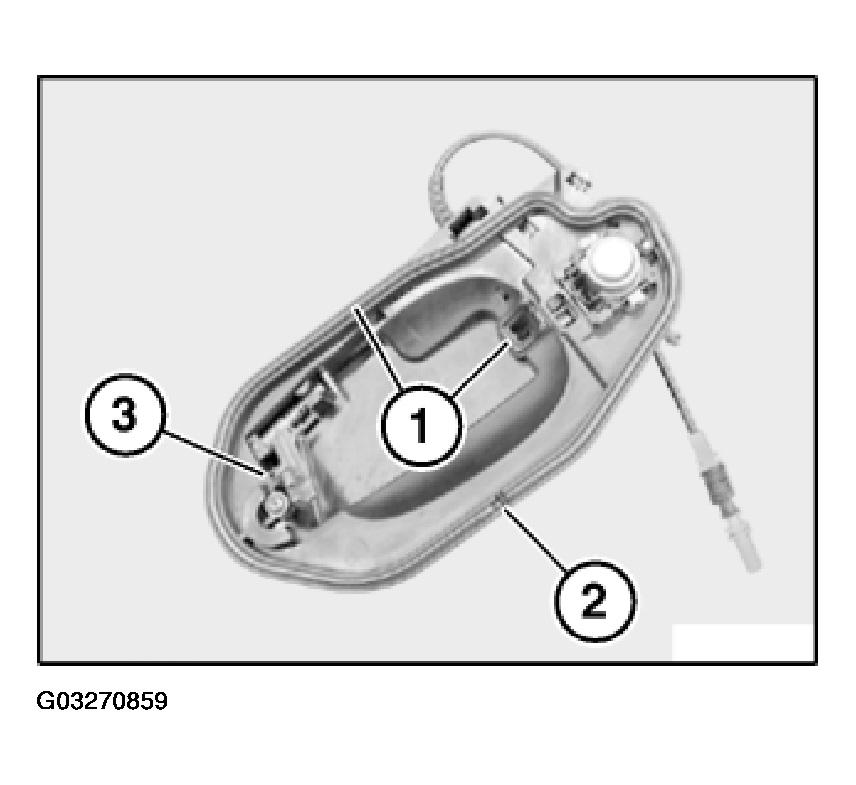

Fig 3: View Of Seals On Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove Bowden cable for outside door handle on front door. Refer to 51 21 233 REMOVING AND INSTALLING/REPLACING BOWDEN CABLE FOR OUTSIDE DOOR HANDLE ON LEFT OR RIGHT FRONT DOOR .
Version with Comfort Access/CA:
Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
