Changing front axle differential oil
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Remove FRONT WHEEL .
- Remove steering box COVER on left.
- Remove STIFFENING PLATE .
Place oil collecting apparatus underneath.

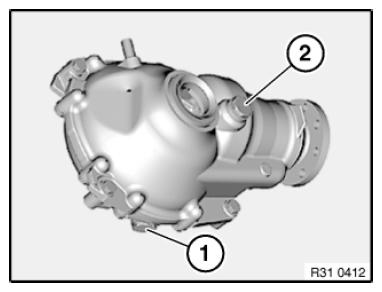

Remove oil drain plug (1).
Tightening torque 31 50 2AZ .
Drain front axle differential oil.
Screw in oil drain plug (1) and tighten.
Undo oil filler plug (2).
Tightening torque 31 50 2AZ .
Fill 600 ml of transmission oil (if necessary, use measuring cup and special tool 00 2 080 .
Installation note:
Replace the oil drain plug and oil filler plug.
