35 11 000 Removing and installing complete bearing block for foot pedal
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove pedal trim. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
- Vehicles with electric steering column:
- Remove electric steering column drive. Refer to 67 64 010 REMOVING AND INSTALLING/REPLACING DRIVE UNIT FOR ELECTRIC STEERING COLUMN ADJUSTMENT .
- Vehicles with manual transmission:
- Remove clutch pedal. Refer to 35 31 000 REMOVING AND INSTALLING / REPLACING CLUTCH PEDAL .
- Remove clutch master cylinder. Refer to CLUTCH MASTER CYLINDER .
IMPORTANT:
After completion of work, carry out function check.

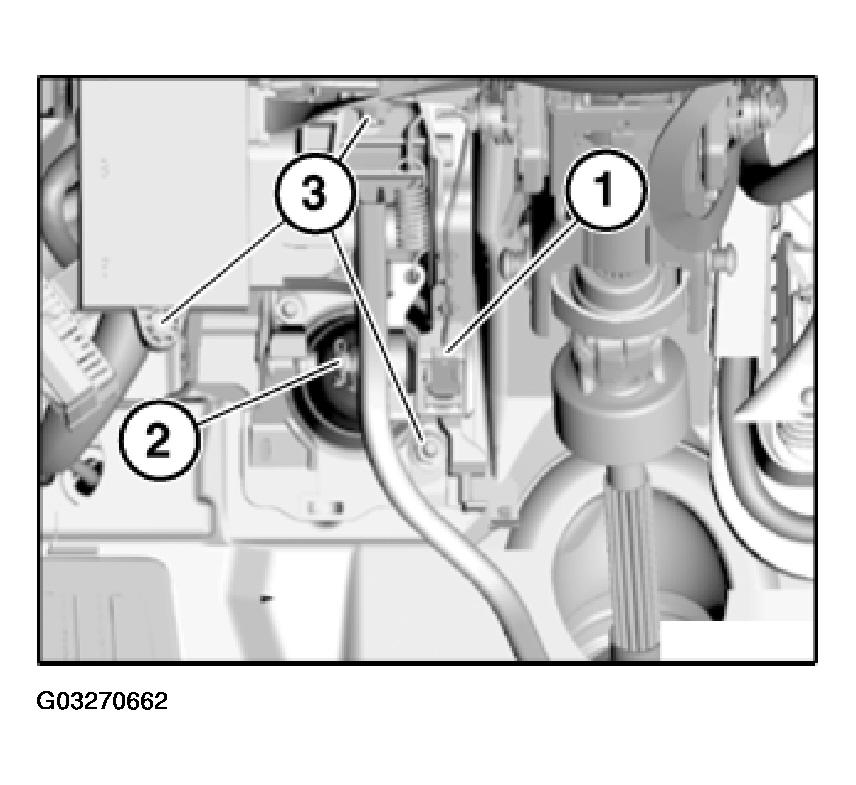

Unfasten plug connection (1).
Remove locking clip (2) and disengage and pull out locking pin. Release nuts (3) and remove bearing block.
Installation:
Replace self-locking nuts. Tightening torque, refer to 35 11 1AZ in PEDALS - TIGHTENING TORQUES .
