35 31 000 Removing and installing / replacing clutch pedal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove pedal trim. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Remove CAS control unit. Refer to 61 35 015 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT FOR CAR ACCESS SYSTEM .

Check function after completing tasks.

Disconnect return spring (1).

Unclip fastener (2).

Pull out pin (3).

If necessary, disconnect over-center helper spring.

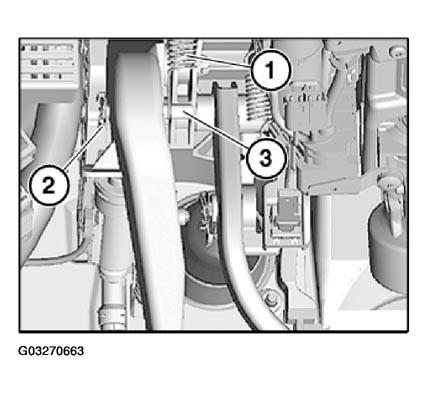

Fig 1: Identifying Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Press hook (1) together and pull out pin.

Installation:

Replace pin. Remove clutch pedal.

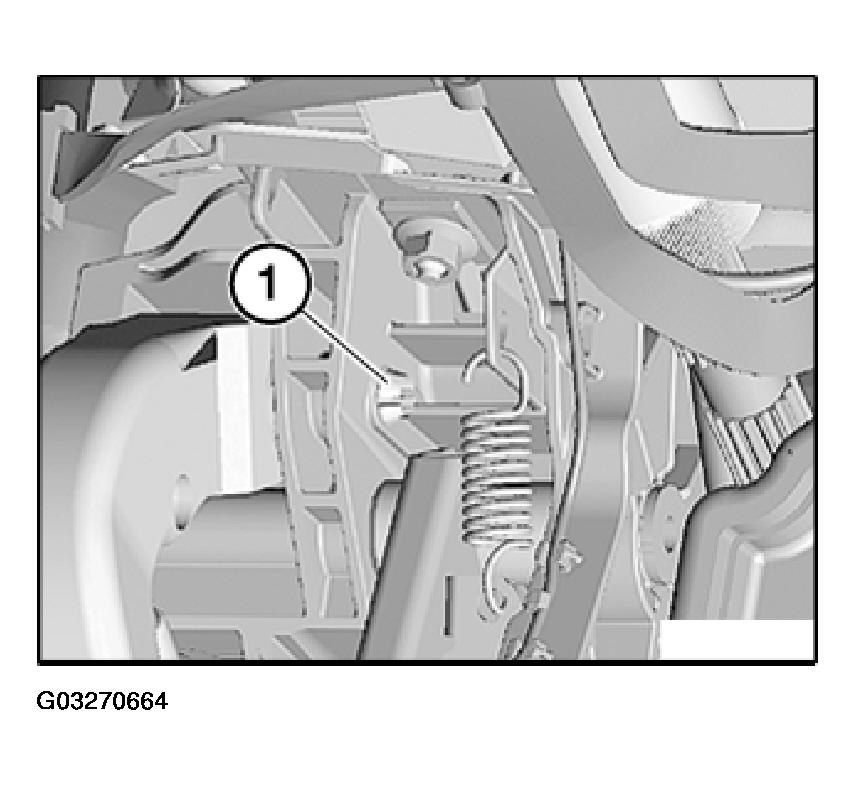

Fig 2: Locating Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.
