34 41 250 Removing and installing/replacing expander lock for handbrake shoes

WARNING: This page is about a different car, the 2007 BMW 550i, 2006 BMW 550i, 2005 BMW 545i, and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

32 1 030

Necessary Preliminary Tasks:

Remove handbrake shoes. Refer to 34 41 220 REMOVING AND INSTALLING/REPLACING ALL HANDBRAKE SHOES .

After completing tasks, adjust handbrake. Refer to 34 10 014 ADJUSTING HANDBRAKE .

Lock adjuster unit (ASZE).

Using special tool 32 1 030, press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

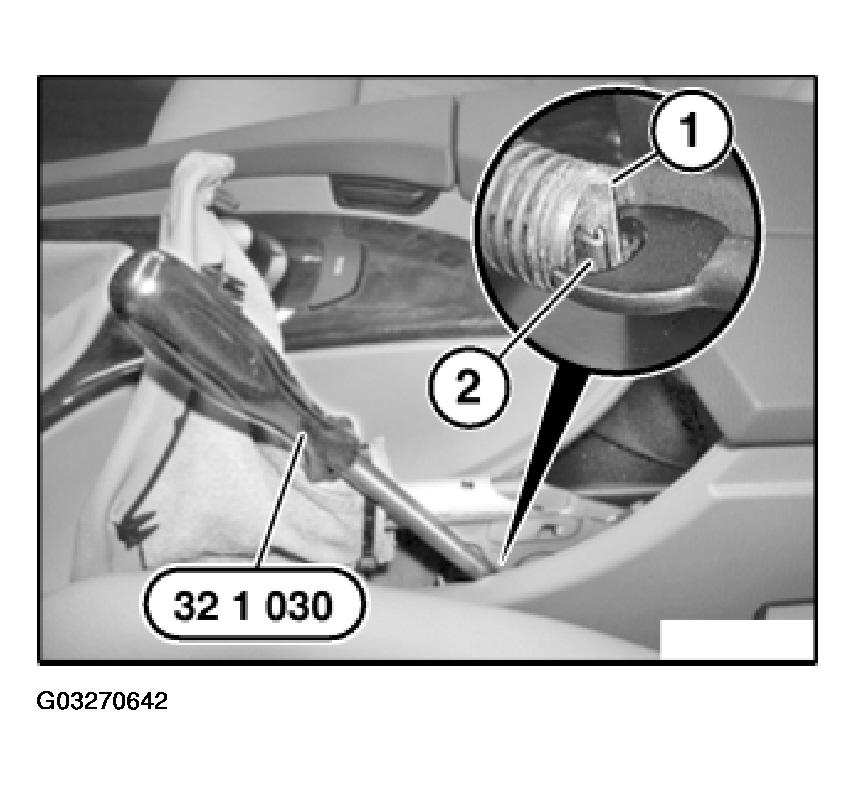

Fig 1: Locating Stop Of Adjusting Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Pull expander lock (1) forwards, disconnect handbrake Bowden cable (2) and remove expander lock. Refer to 34 41 250 REMOVING AND INSTALLING/REPLACING EXPANDER LOCK FOR HANDBRAKE SHOES .

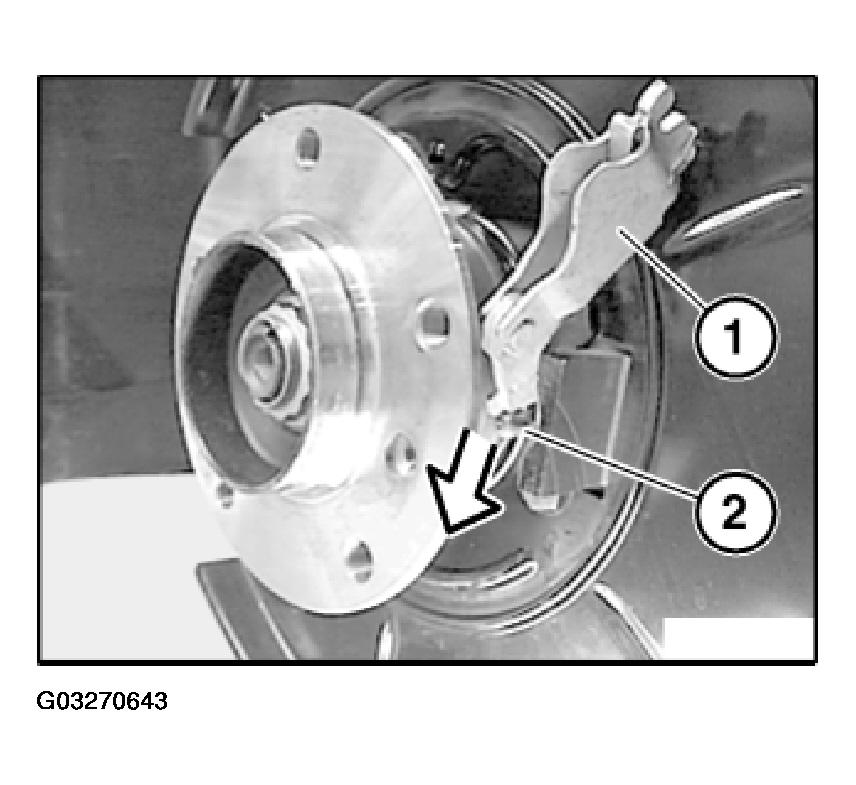

Fig 2: View Of Expander Lock

Courtesy of BMW OF NORTH AMERICA, INC.
