34 41 220 Removing and installing/replacing all handbrake shoes

WARNING: This page is about a different car, the 2007 BMW 550i, 2006 BMW 550i, 2005 BMW 545i, and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see BRAKES - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

32 1 030
34 4 000

Installation:

Remove rear brake disc. Refer to 34 21 320 REMOVING AND INSTALLING OR REPLACING BOTH REAR BRAKE DISCS .

After completing tasks, adjust handbrake. Refer to 34 10 014 ADJUSTING HANDBRAKE .

Lock adjuster unit (ASZE).

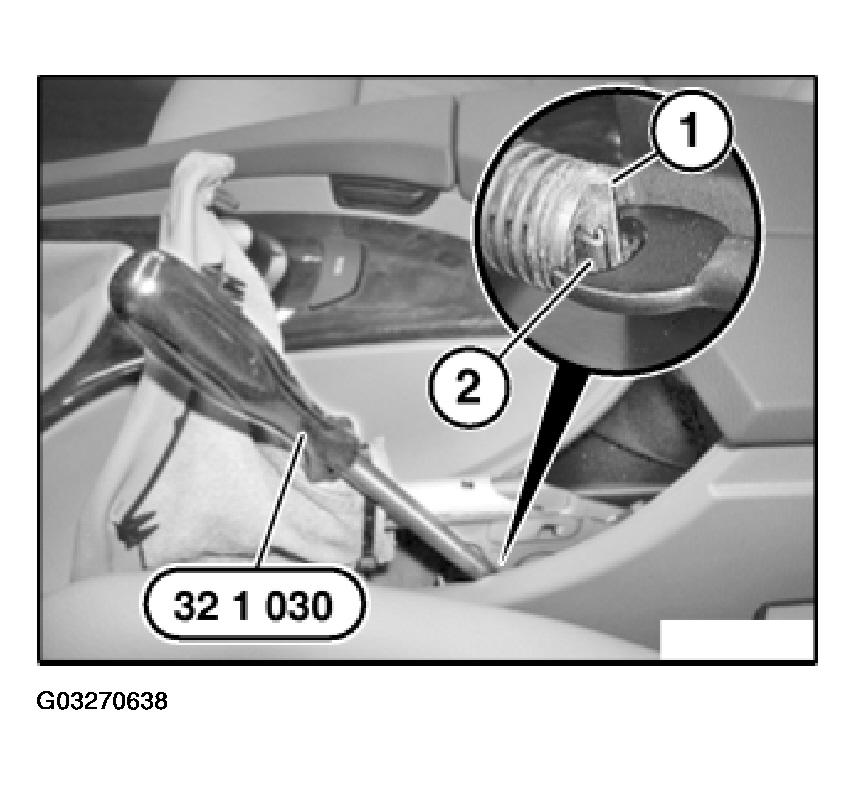

Using special tool 32 1 030, press stop (2) of adjusting spring back to such an extent that retaining hook (3) engages in stop (2).

Fig 1: Locating Stop Of Adjusting Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect return spring (1) with brake spring pliers.

Installation:

Check and if necessary replace return spring (1).

Figure illustrates right side: left side is mirror image of this.

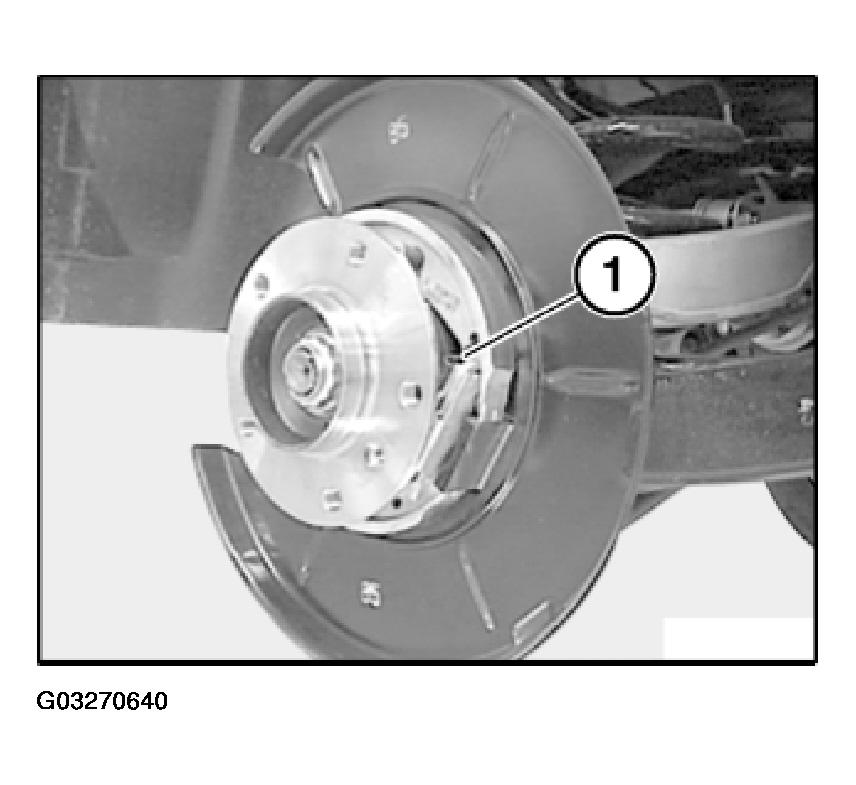

Pay attention to installation position of adjustment screw (2).

Apply a thin coat of grease to bush and screw threads.

Fig 2: View Of Brake Spring And Adjustment Screw

Courtesy of BMW OF NORTH AMERICA, INC.

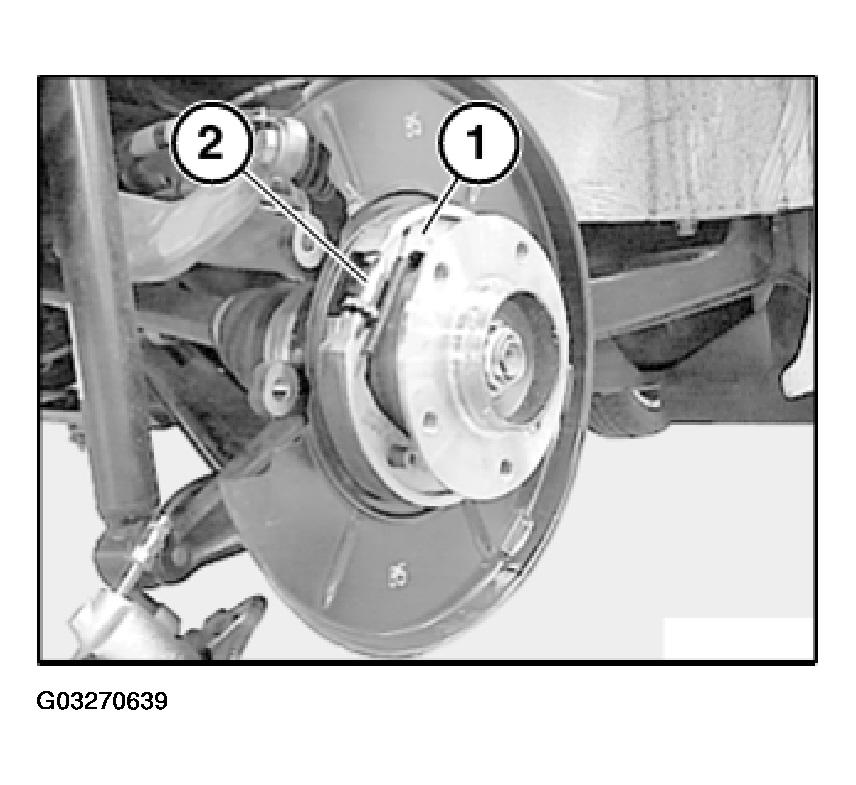

Disconnect return spring (1) with brake spring pliers.

Installation:

Check and if necessary replace return spring (1).

Fig 3: Disconnecting Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

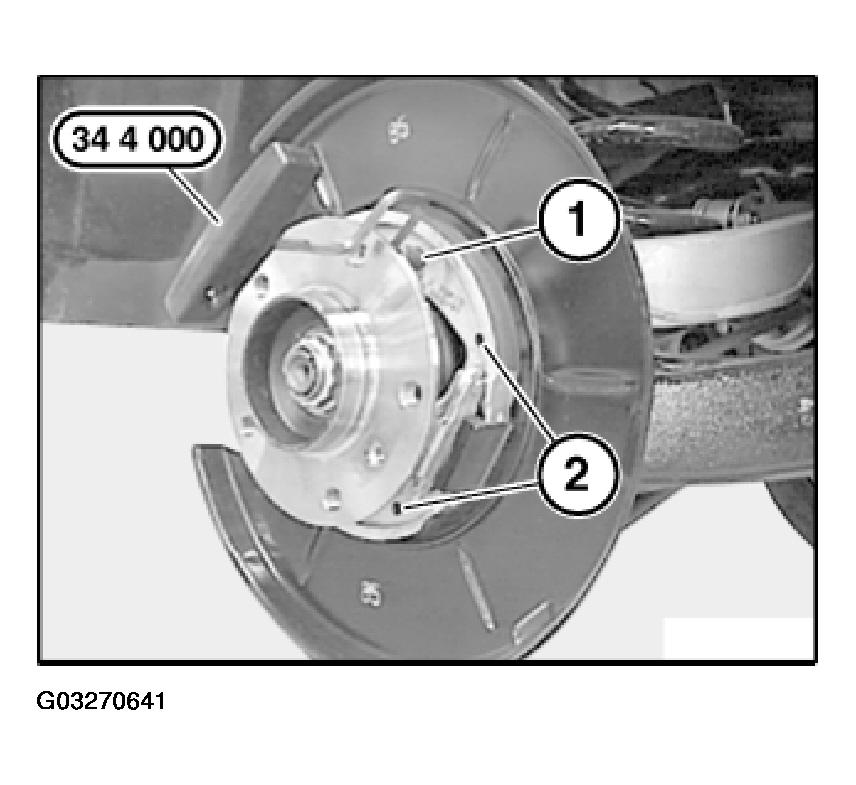

Turn clamping pins (1) with special tool 34 4 000 through 90° and disconnect.

Remove brake shoes (2).

Fig 4: Removing Clamping Pins

Courtesy of BMW OF NORTH AMERICA, INC.
