51 42 001 Replacing left or right rear door trim panel
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove SWITCH FOR SIDE WINDOW OPERATION .
- Remove DECORATIVE STRIP OPTICAL FIBRE .
- If necessary, remove OPTICAL FIBRE BOTTOM STORAGE COMPARTMENT .
- Remove INSIDE DOOR OPENER .
- Remove MID-RANGE SPEAKER .
- If necessary, remove TWEETER .
- If necessary, remove ROLLER SUN BLIND .
- If necessary, remove SEAT MEMORY OPERATING UNIT .
Equipment package with seat memory switch:
Punch CONTOUR FOR SEAT MEMORY SWITCH INTO DOOR TRIM PANEL .
Installation:
Replacement:

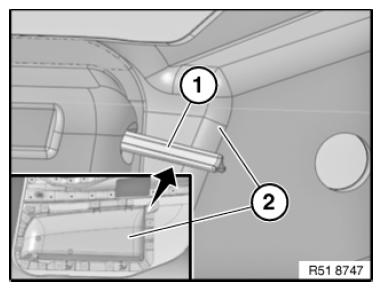

If optional optical fibre is fitted, break off pin (1) in map pocket (2) if necessary.
