51 16 405 Removing and installing/replacing roller sunblind on side window of left or right rear door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove REAR DOOR TRIM PANEL .

Release screws (1).

Remove roller sunblind module

Tightening torque 51 16 18AZ .

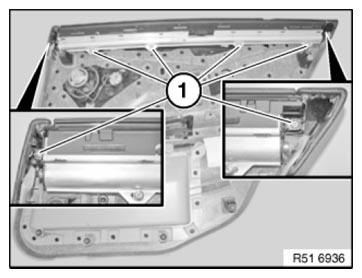

Fig 1: Identifying Roller Sunblind Module Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check holder (1) for damage. If necessary, replace roller sunblind.

Insert guide rail (2) into guide (3).

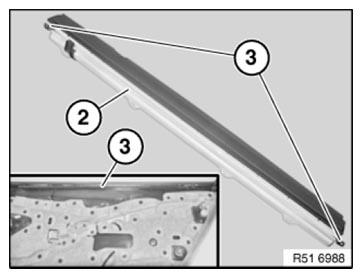

Fig 2: Identifying Holder, Guide Rail And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
